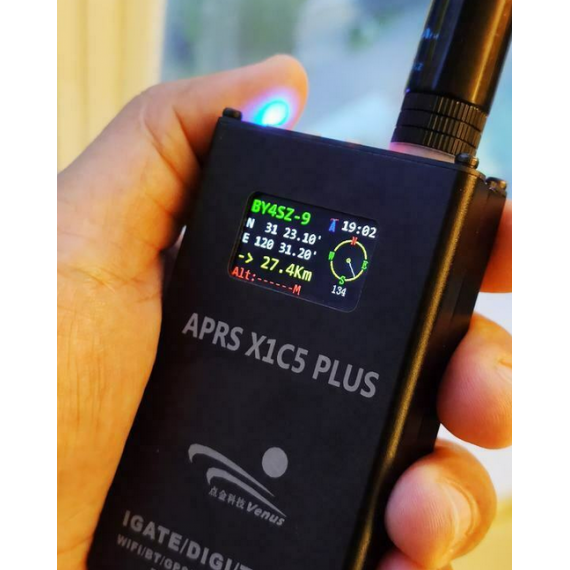

Venus - X1C5 - APRS Tracker VHF

UPS UPS, enheten krever en del oppsett fra deg som kunde, det kan være snakk om innlasting av Firmware og tilsvarende som til tider kan kreve en del ekstra.
Med dette mener vi å si at produktet ikke er så strømlinjeformet som man kanskje kunne ønske seg, men at produktet alikevel gir mye for pengene, med litt egeninsats.


Her har Richard Newstead laget en fin review av enheten.

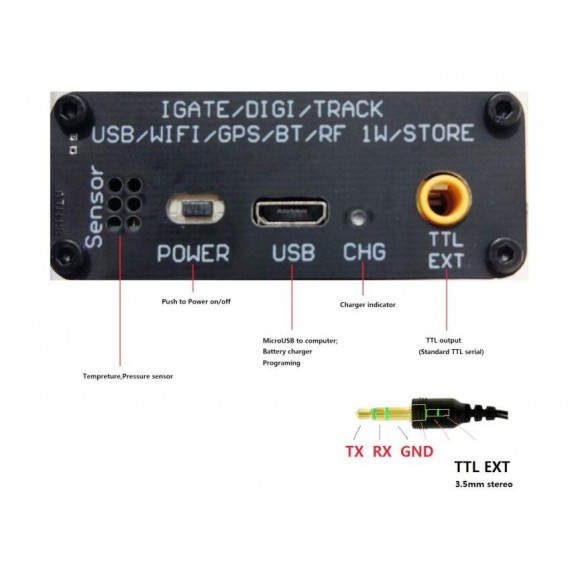

Three buttons can be used multifunctional (depends on the firmware)!

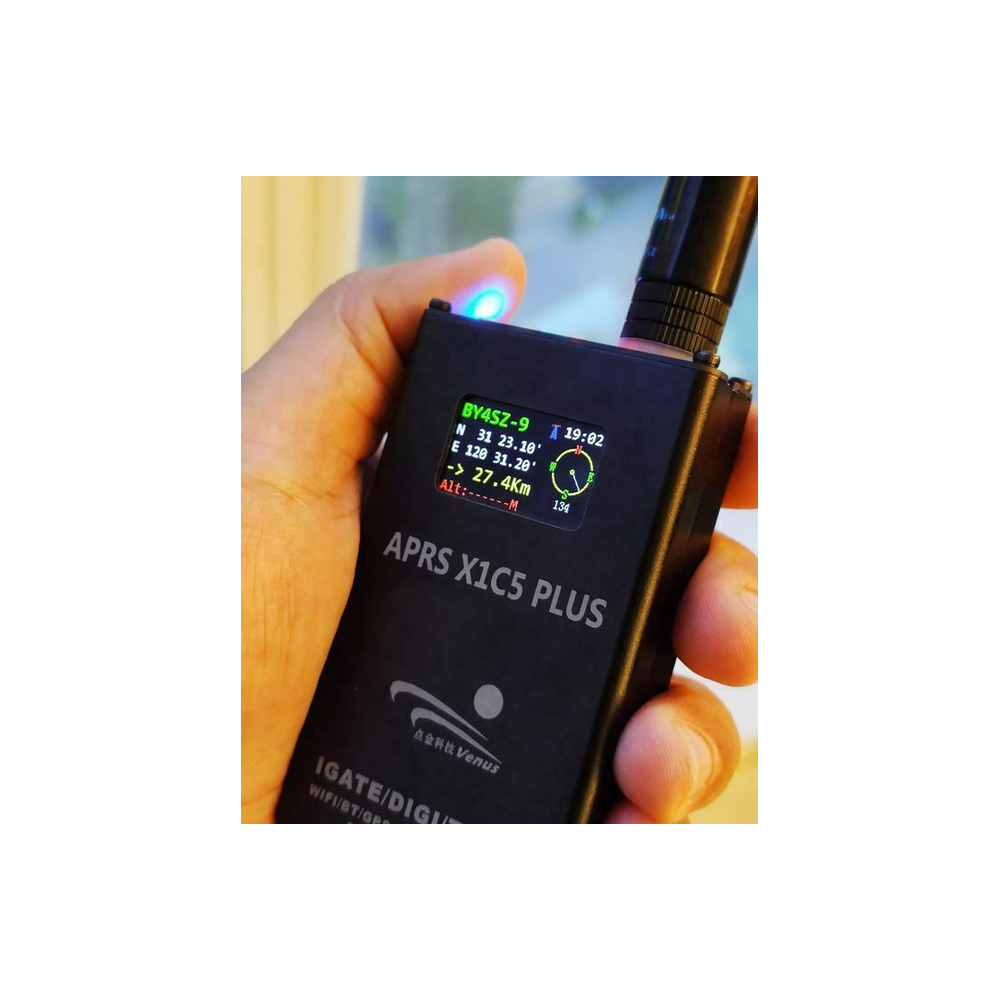

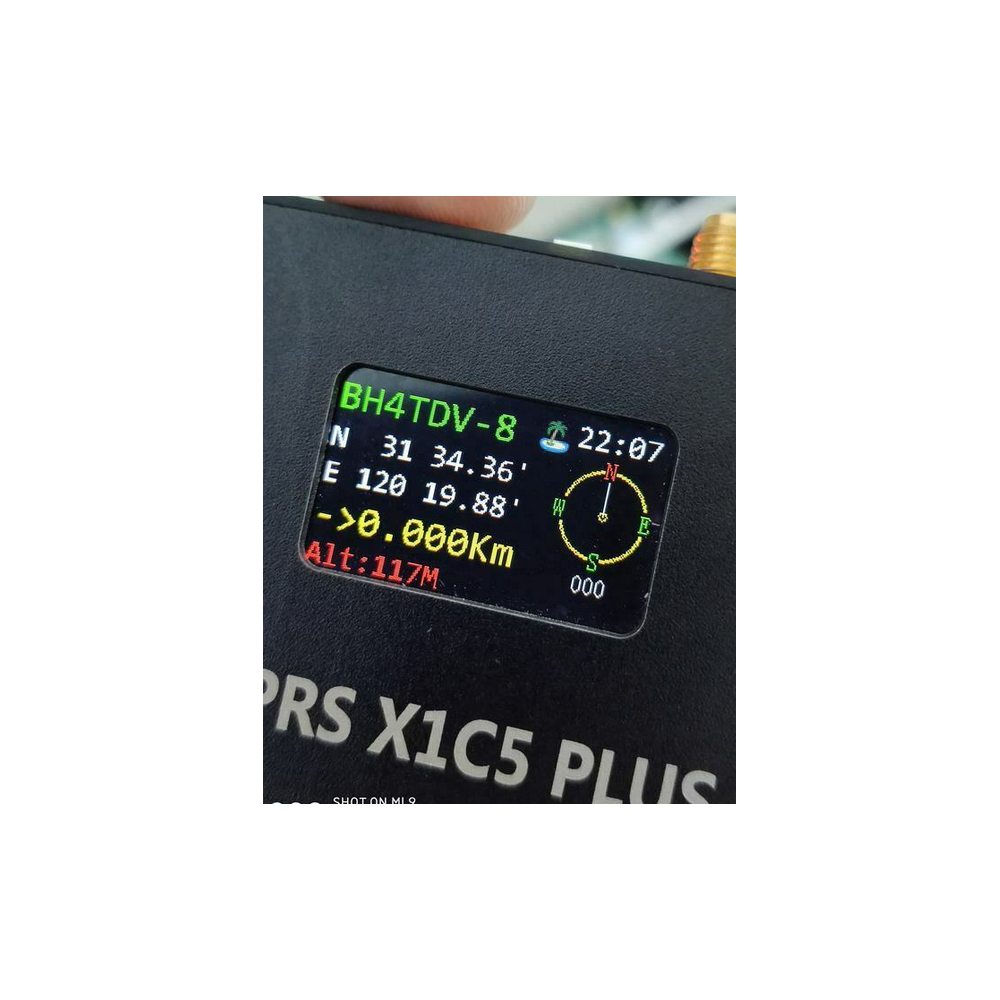

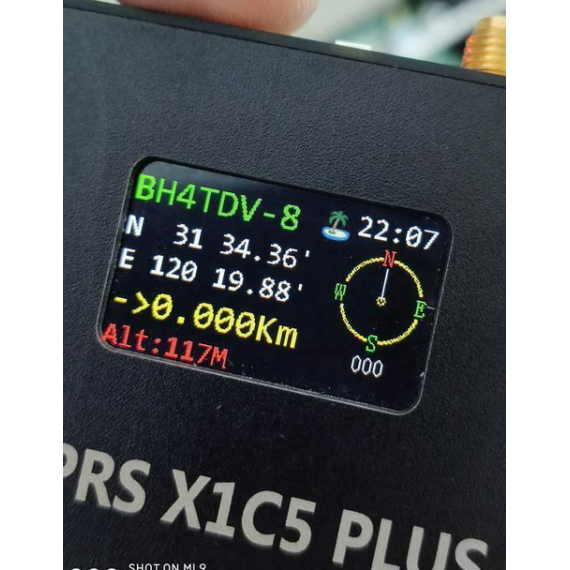

1.8-inch color LCD

Support fixed station FIXED, sports SPORT, 2 site modes

Support complete TRACK tracker, support intelligent, timing, PTT linkage, queue beacon

Support beacon additional information, mileage, satellite number, voltage, temperature, air pressure, etc.

Support mileage calculation, support accumulated mileage or automatically clearance

Support for automatic icons (TRACK smart mode)

Support GPS power saving mode (TRACK PTT linkage mode, TRACK timing mode)

High altitude up to 18000meters above sea level

Integrated 2.0+4.0 dual mode Bluetooth,

Support Bluetooth output KISS hex, UI, GPWPL, KISS ASC, GS232B and other protocols

Support Bluetooth output GPS data (GPRMC+GPGGA), support mixed output

Support Bluetooth KISS data bidirectional transparent transmission

Support full DIGI relay function, support custom relay name, support relay remote turn-off function

Support remote control peripheral sensor input and relay output module

Built-in advanced CMX programming algorithm

Built-in transmit level, receive level adjuster (-10.5dB -0dB)

Built-in high performance GPS\Beidou\GLONASS multimode hybrid positioning module

Built-in advanced algorithm to support rich data analysis

Support heading, north position, relative motion position calculation

Support APRS distance, elevation target calculation, support G5500 aircraft, vessel and other tracking control

Companion PC setup software (Chinese, English) (requires .NET 4.0)

UHF or VHF options, 1W RF output

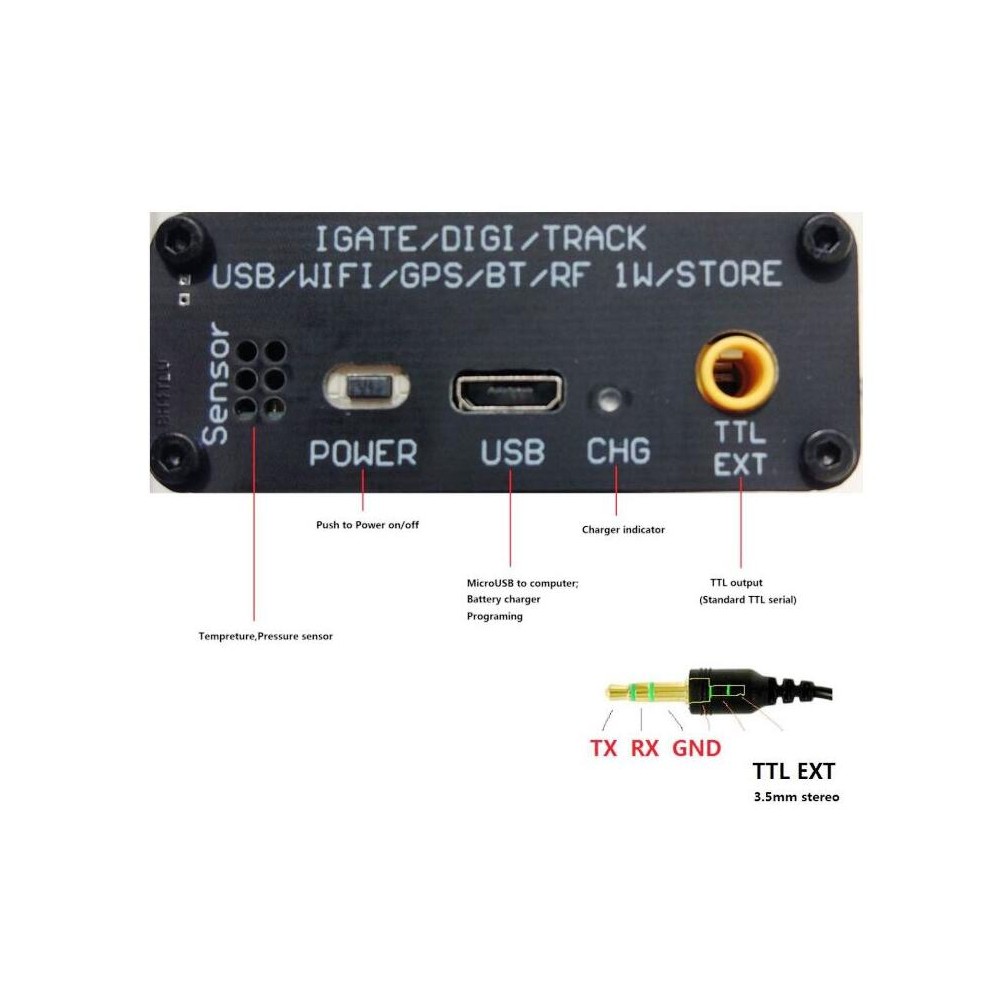

Support battery USB direct charging

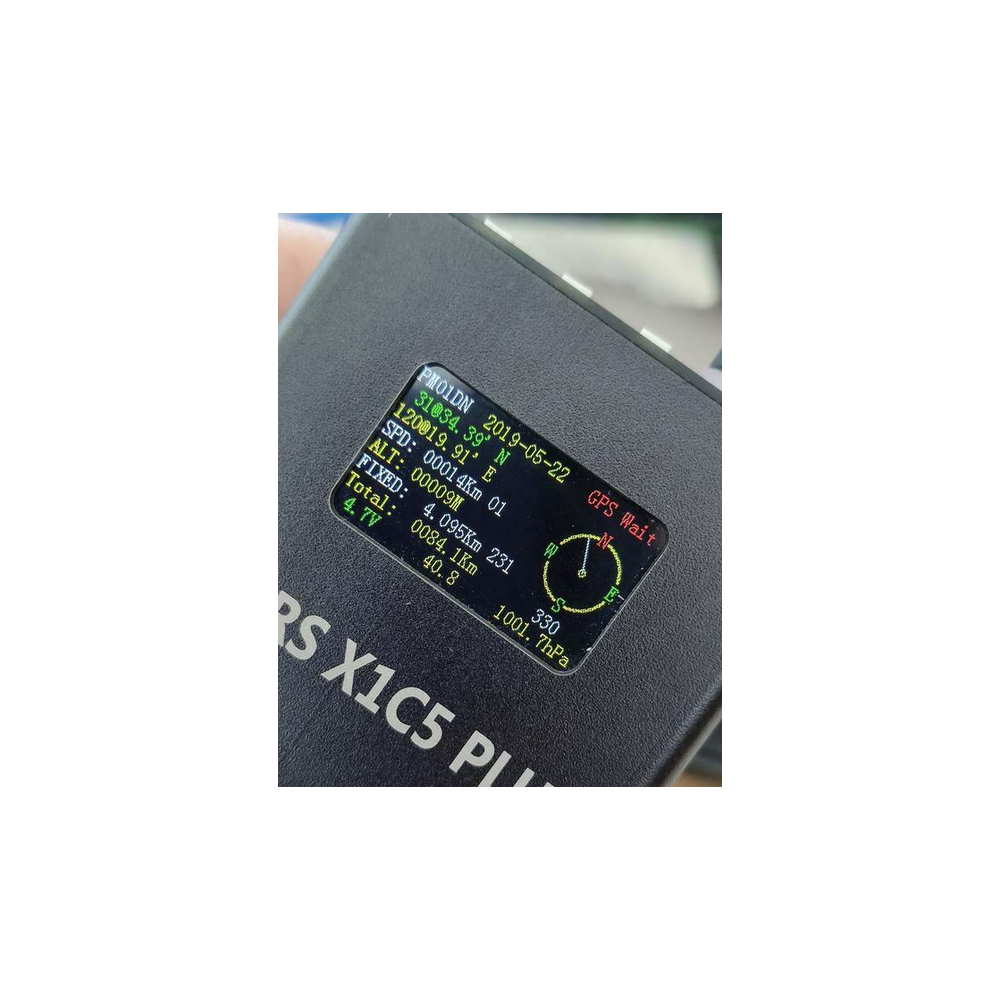

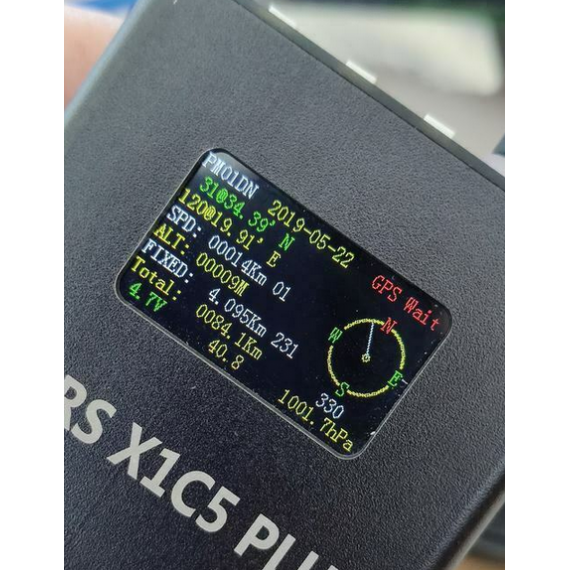

Support comprehensive GPS interface, beacon list interface, real-time beacon interface, beacon record analysis interface

Built-in temperature\pressure auxiliary sensor (temperature & air pressure values for reference only)

Support off-network use, no network, direct mutual positioning

Support liuyun, APRSdroid, LOCUS, Ovi and other APP

Support user independent firmware upgrade

Specifications

Package

1 x Venus - X1C5 APRS Tracker

1 x USB Charging Cable / programming cable

1 x Antenne ca 40cm
