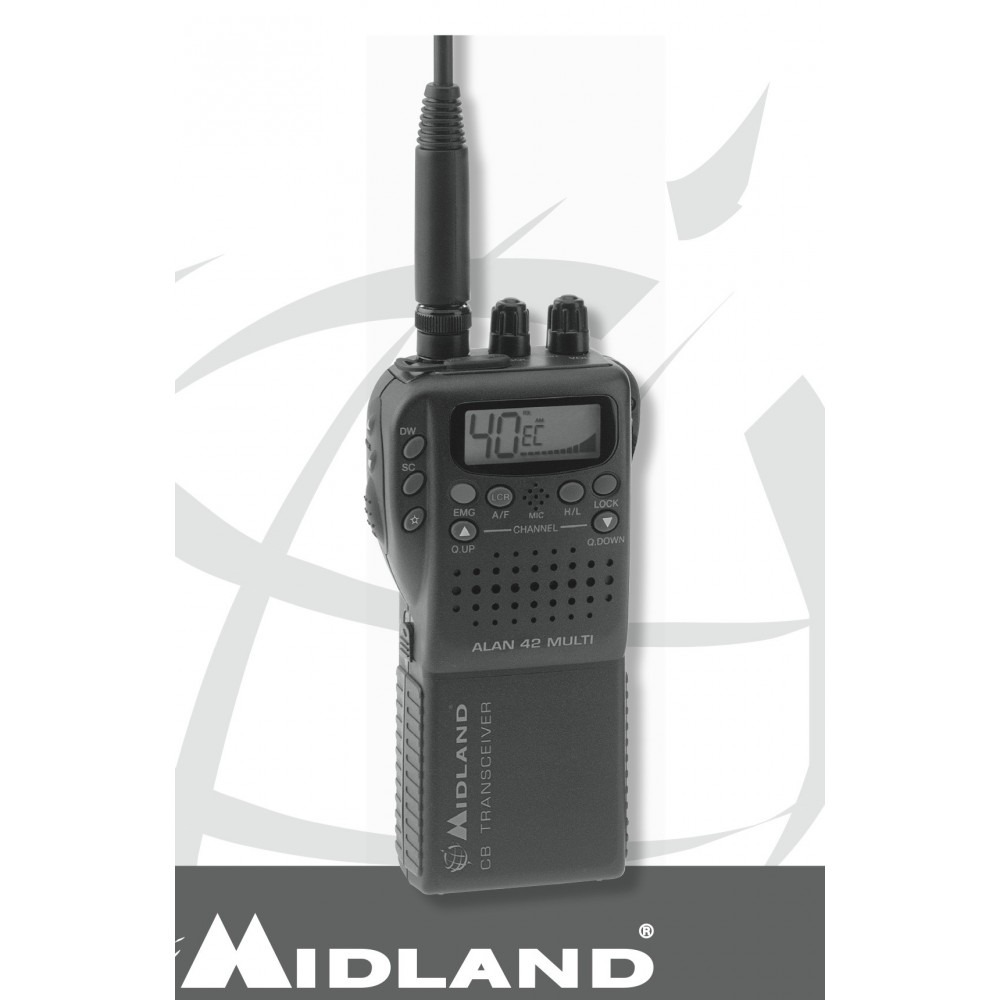

Midland - Alan 42 Multi
Midland - Alan 42 Multi

Midland - Alan 42 Multi

Zodiac - Micro Waterproof duo pack 444/446 MHz

.40FM/40AM kanaler

Les merShow less
kr 1,998.00
På lager 2 Enheter
Referanse:
123
Beskrivelse
.40FM/40AM kanaler
Batteritype 6 x AA alkaliske
Medfølgende i esken er :
Batterielimnator med PL-259 antenne utak, for enkel oppkobling i bil.
Batterikassett til AA batterier.
Ladbar Batterikassett til oppladbare AA batterier.
Batterieliminator for bruk med oppladbar kassett.
Bag.

TECHNICAL SPECIFICATIONS:

Channels  :                 40 FM (see the Frequency band chart)
Frequency Range :    25.615-30.105 MHz
Operating mode :       F3E (FM), A3E (AM).
Antenna impedance : 50 Ohm.
Loudspeaker :            8 Ohm 0.5W.
Microphone :              condenser type
Power supply :           7.2 ÷ 13,2 nom 12V
Dimensions :              30x70x140 mm.
Weight  :                     220 gr. (without batteries).

RECEIVER

Sensitivity at 10dB S/N 0.5μV (AM), 0.25μV (FM)
Selectivity more than 60dB
Squelch range 0.25V-500μV
Audio output power 0.5W 8 ohm (10% distortion)
Distortion at 1000 μV 3%
Audio frequency response 400-2400 Hz
Intermediate frequency  I° 10.695 MHz II° 455 KHz
Spurious response more than 60 dB
Current drain at stanby 100 mA when the save mode is off 45 mA when the save mode is on

TRANSMITTER
RF Output Power duty cycle 10% 4W AM/FM
Frequency Tolerance  0.005%
Harmonic Suppression more than 70 dB
Current Drain 900 mA
Modulation AM 90% (± 5%) FM dev. 2.0KHz

Les merShow less
