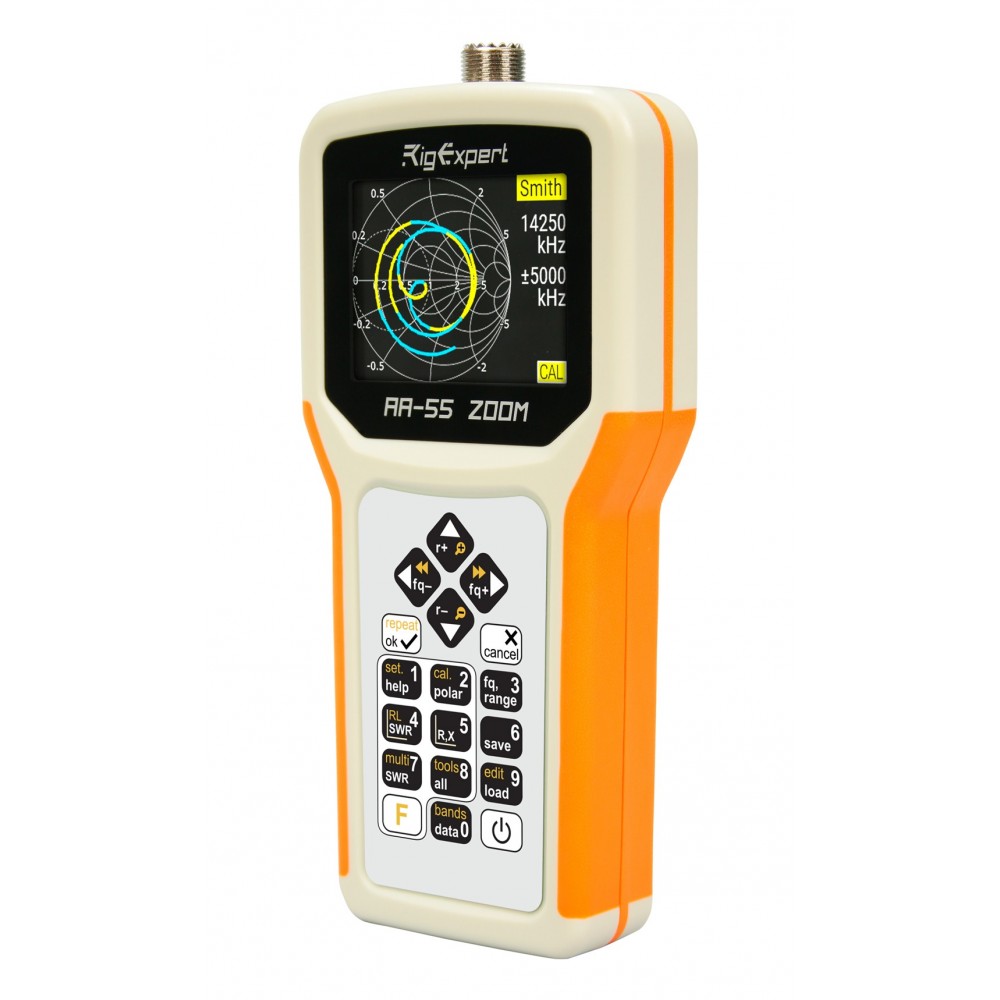

Den innebygde zoom mulighetet gjør at du enkelt ser hvilket punkt du faktisk måler.
Følgende funksjoner er i denne analysatoren:

• Rask sjekk av antennens status

• Tune antennen til resonans

• Loggføring av antennens funksjon og status, slik at du enkelt kan se om den forandrer seg i uvær eller p.g.a ytre påvirkninger.

• Lage små coax biter og måle coaxens parametere.

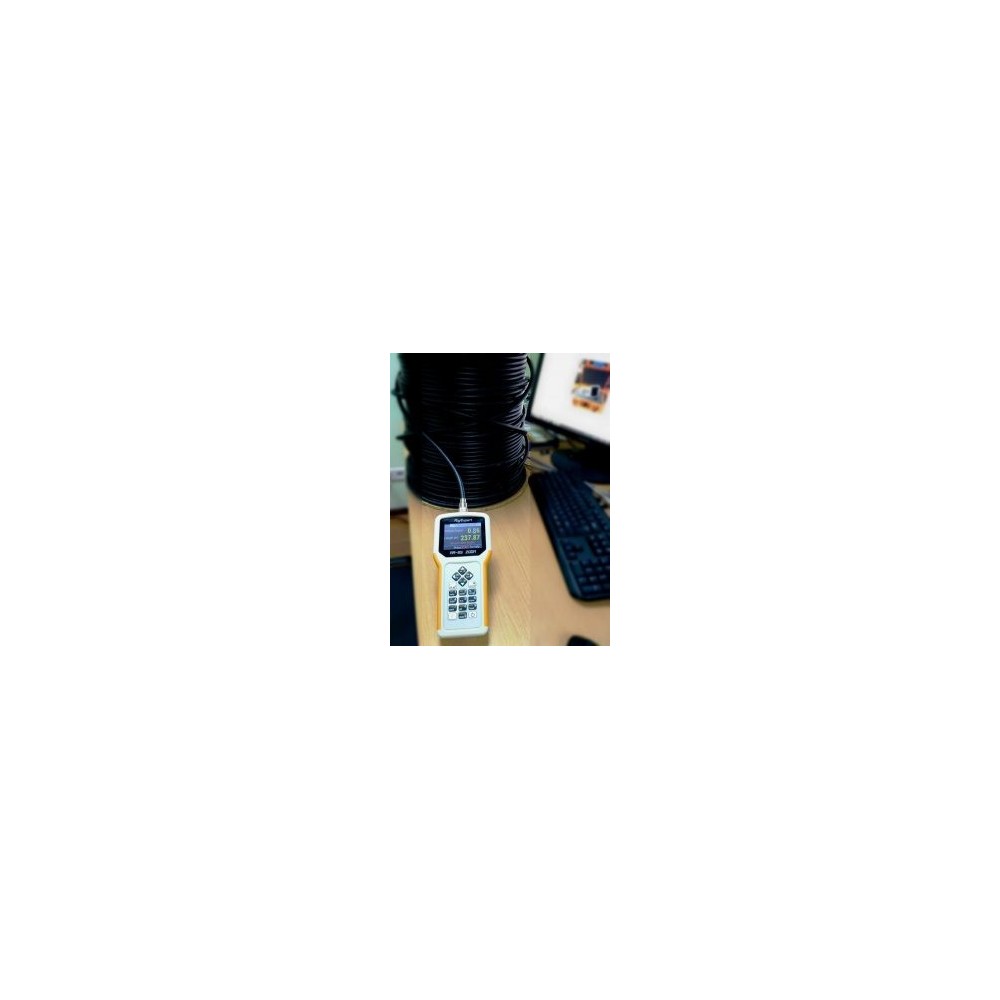

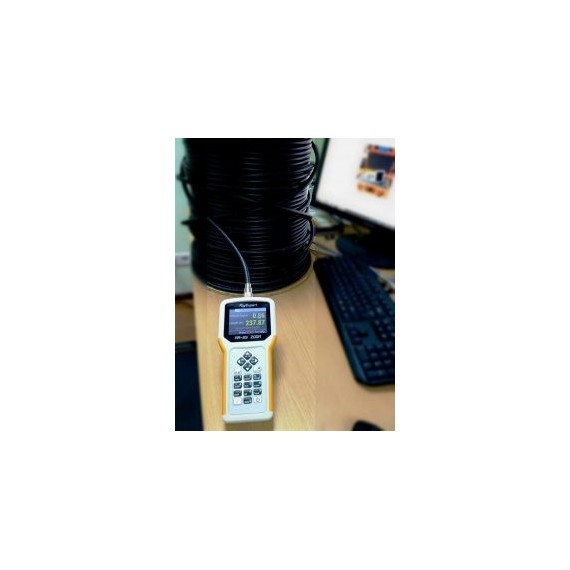

• Kabel test og feil finning, måle kabel tab og impedanse.

  Frequency range:0.06 to 55 MHz

  Frequency entry: 1 Hz resolution
  Measurement for 25, 50, 75 and 100-Ohm systems
  SWR measurement range: 1 to 100 in numerical  modes,1 to 10 in chart modes
  SWR display: numerical or analog indicator
  R and X range: 0…10000, -10000…10000 in numerical modes,
  0…1000, -1000…1000 in chart modes

  Display modes:
  –    SWR at single or multiple frequencies
  –    SWR, return loss, R, X, Z, L, C and phase angle at single frequency
  –    SWR chart, 100 points
  –    R, X chart, 100 points
  –    Smith chart, 100 points
  –    Return loss chart, 100 points

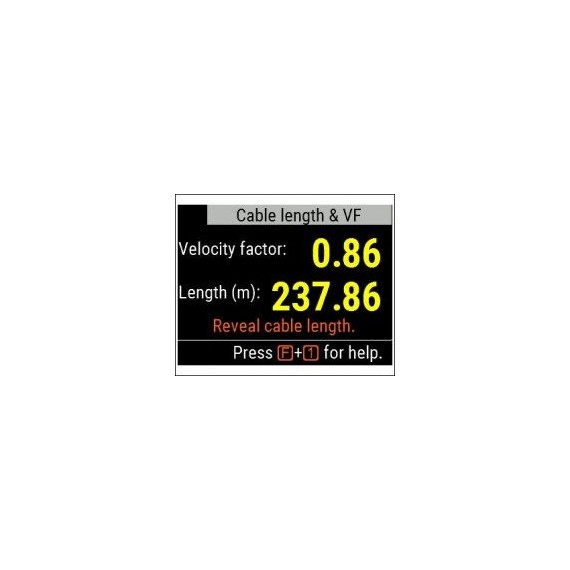

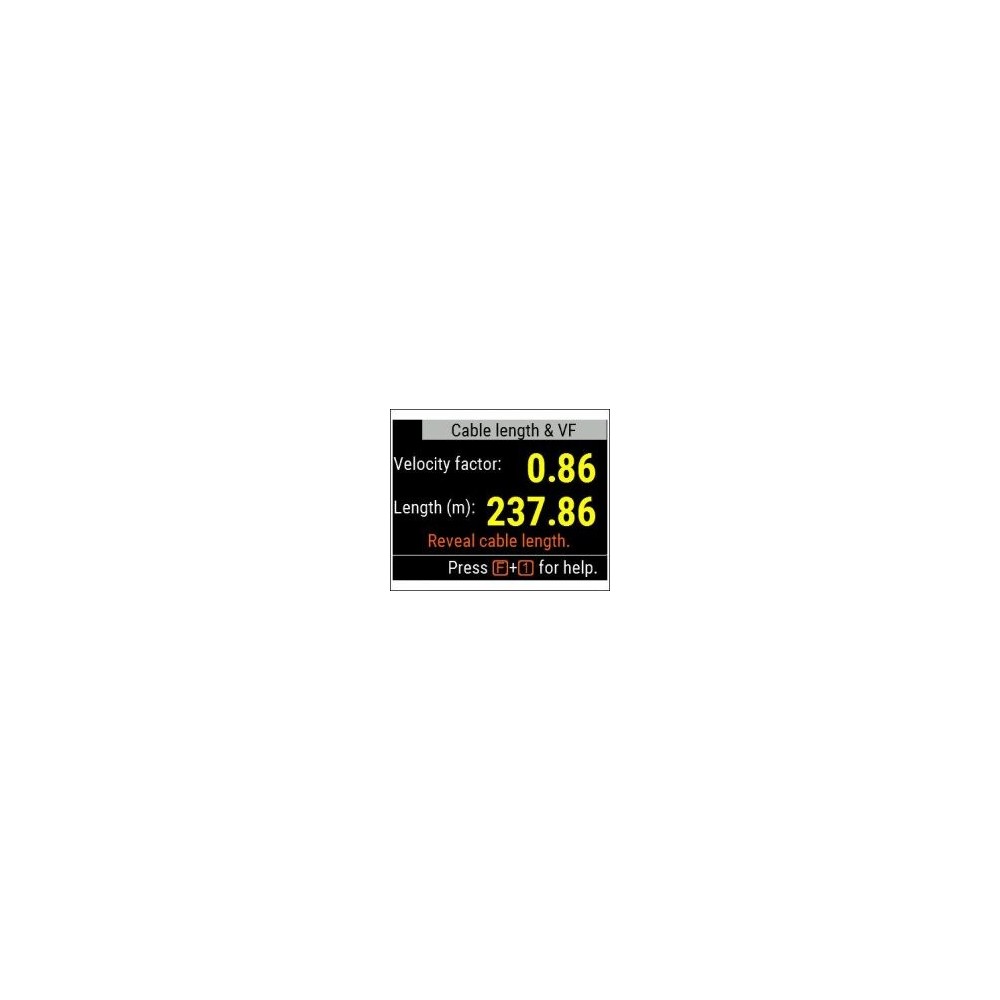

  –    Cable tools (loss and characteristic impedance)

  Optional open-short-load calibration.

  Non Volatile memory:
  – 10 slots to save measurement results

  RF output:
  –    Connector type: UHF (SO-239)
  –    Output signal shape: square, 0.06 to 55 MHz
  –    Output power: +13 dBm (at 50 Ohm load)

  Power:
  –    Two 1.5V alkaline batteries, type AA
  –    Two 1.2V Ni-MH batteries, type AA *
  –    Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
  –    When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

  Interface:
  –    320×240 color TFT display
  –    6×3 keys on the water-proof keypad
  –    Multilingual menus and help screens
  –    USB connection to a personal computer
