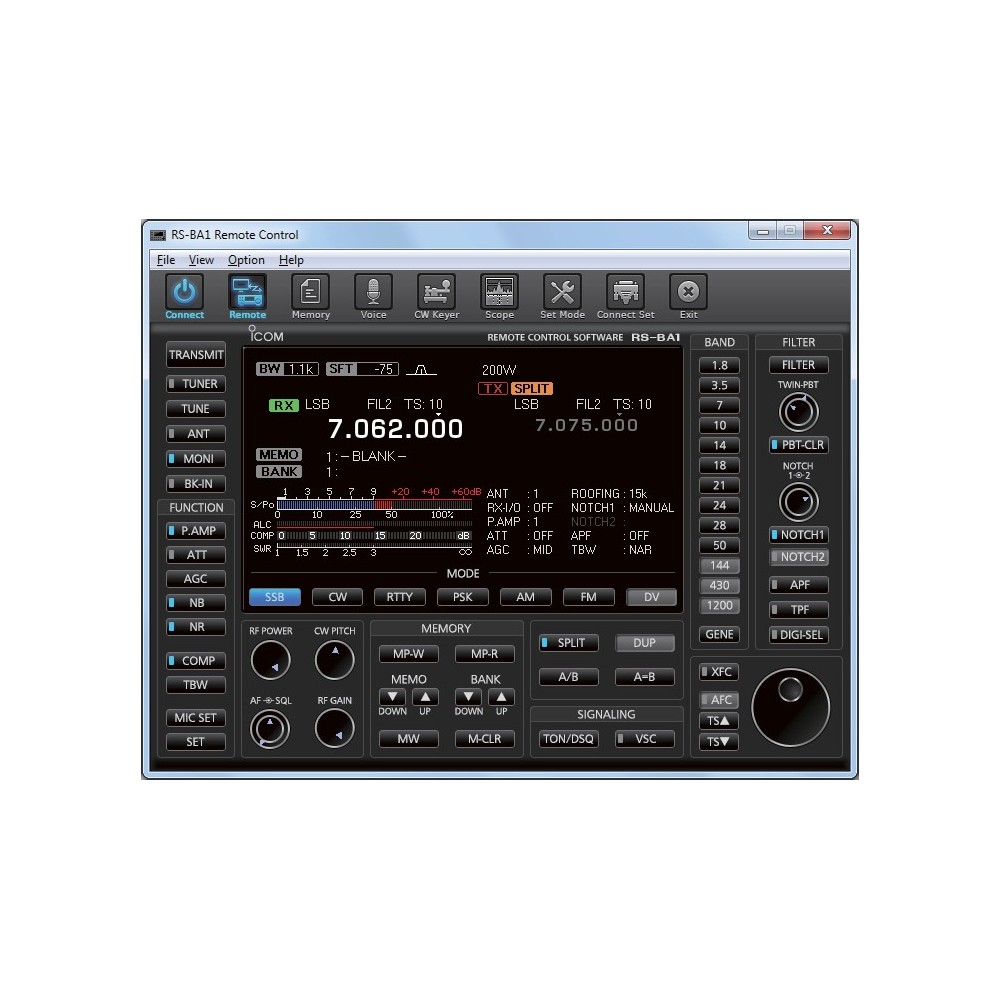

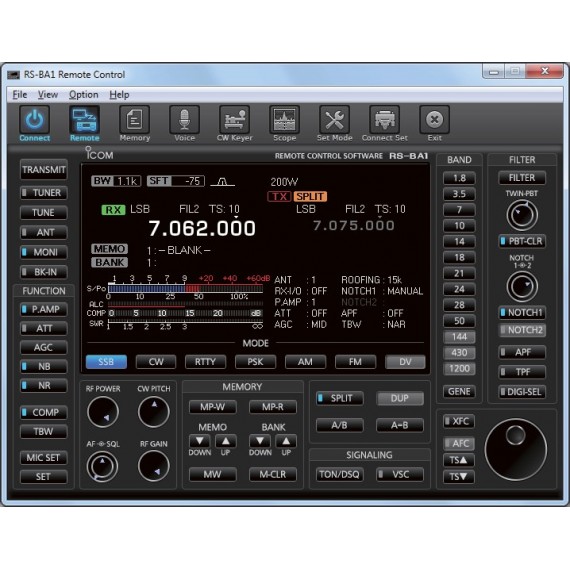

ICOM - RS-BA1 v2.0

Further Advanced Dualwatch Remote Control Software

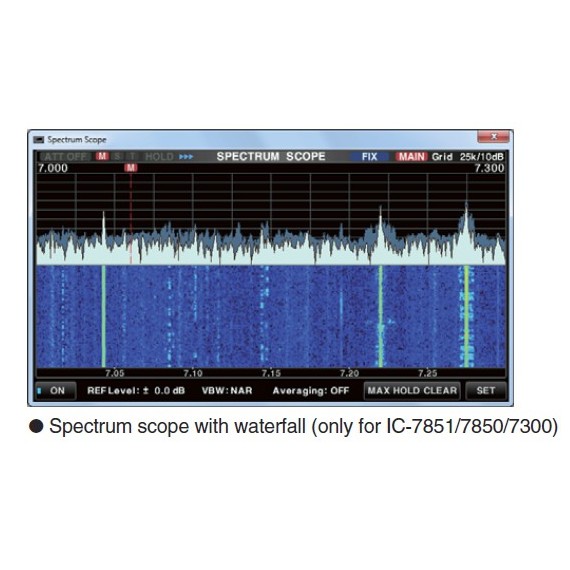

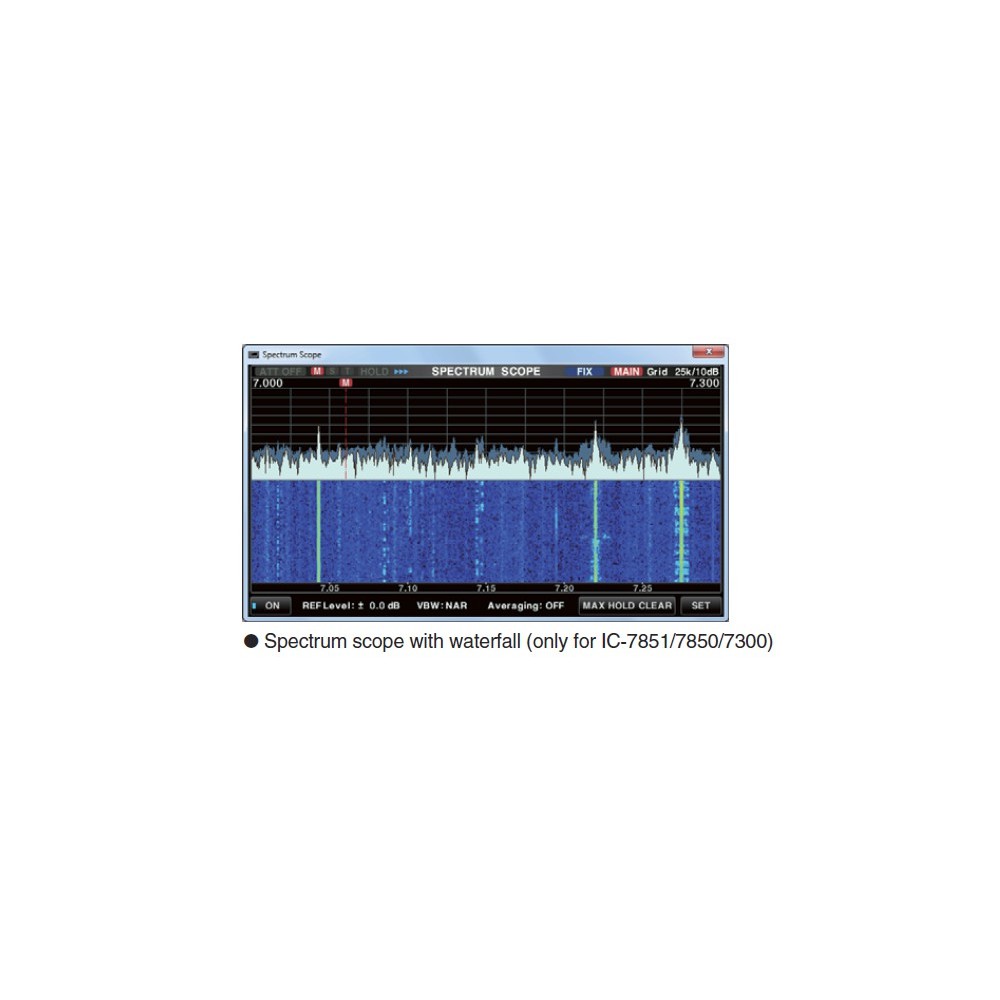

Dualwatch, Dual Spectrum Scope Control

The dualwatch operation and dual spectrum scopes with the waterfall functions* can be used on your remote PC. MAIN and SUB spectrum scopes can be observed on the RS-BA1 at the same time. Of course, the RS-BA1 can be used with Icom single receiver transceivers.

* The dualwatch and dual spectrum scope functions are only for the IC-7851, IC-7850 and IC-7610. The spectrum scope functions (single receive) are usable with the IC-7300.

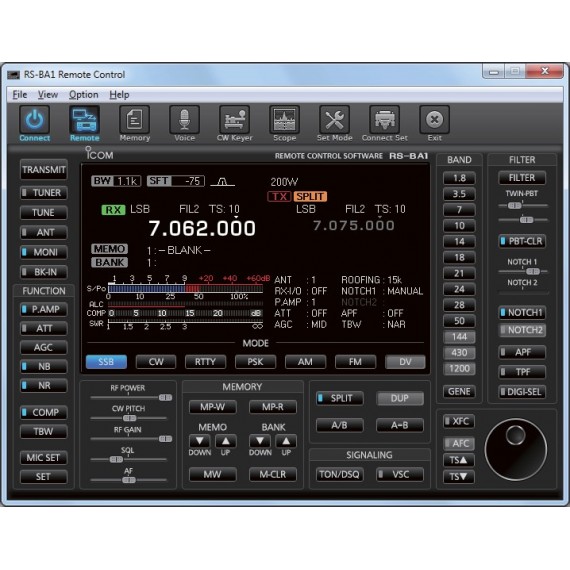

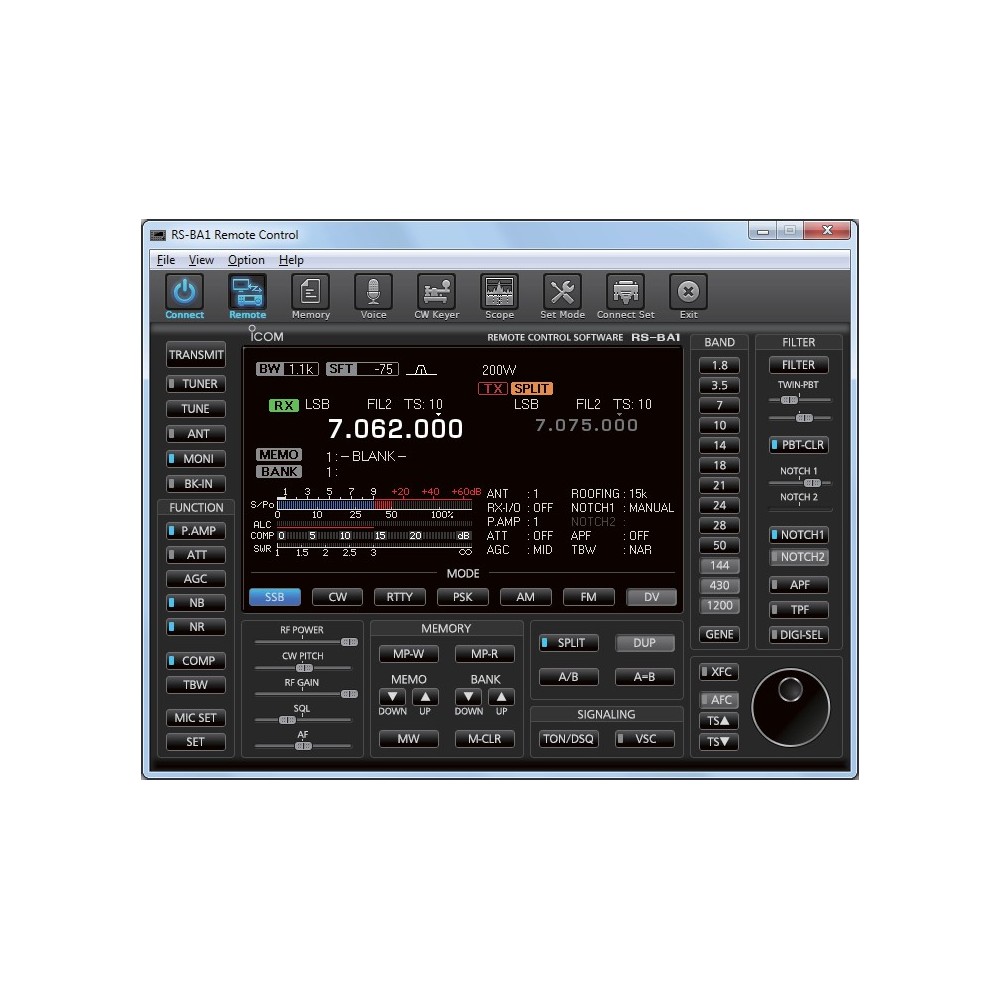

Most Functions Can Be Controlled

Most functions and modes of your transceiver, including interference rejection functions and IF filter settings, can be controlled using the CI-V commands. The following functions are added to the RS-BA1 Version 2.

• Panel size can be enlarged (Normal or large size selectable)
• Indicator click operation to change the settings
• RIT and ⊿TX functions
• [MUTE] button
• SUB dial

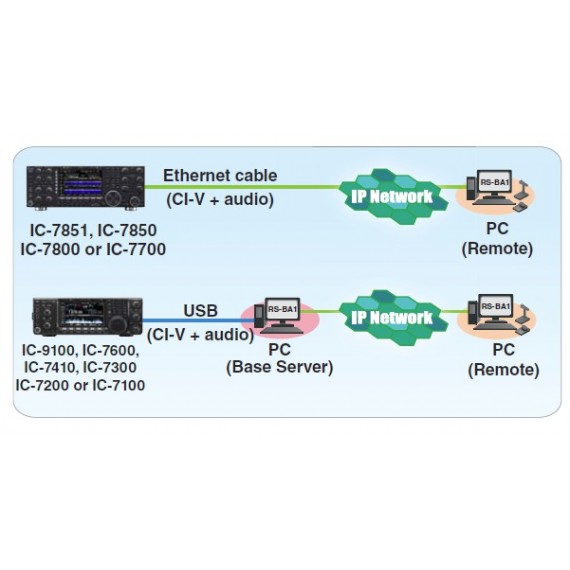

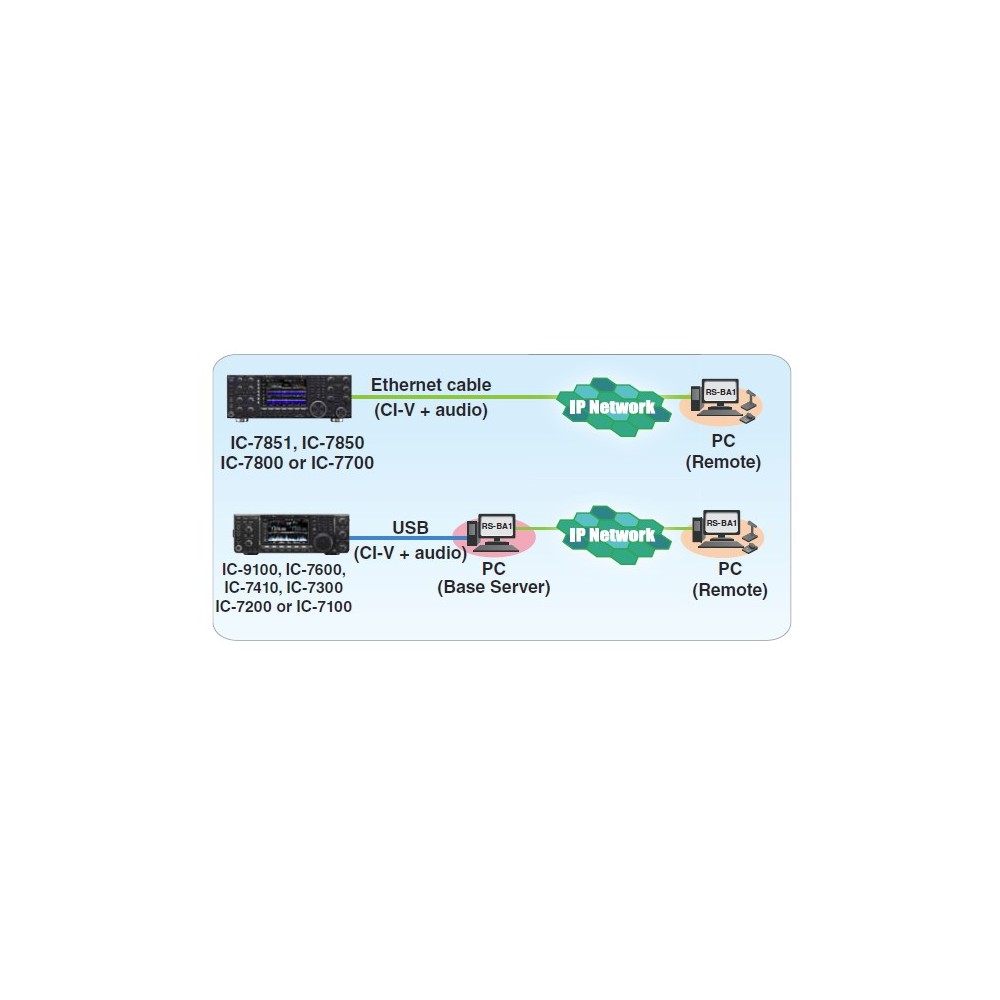

Low Latency, High Quality Audio Over an IP Network

The RS-BA1 offers real-time operation with low latency, high quality audio. You can use the transceiver installed in another room using your home network, or even from a remote location over the Internet*.

* A static public IP address or Dynamic DNS is required for the base station (Server) PC, when you configure the remote control system through the Internet.

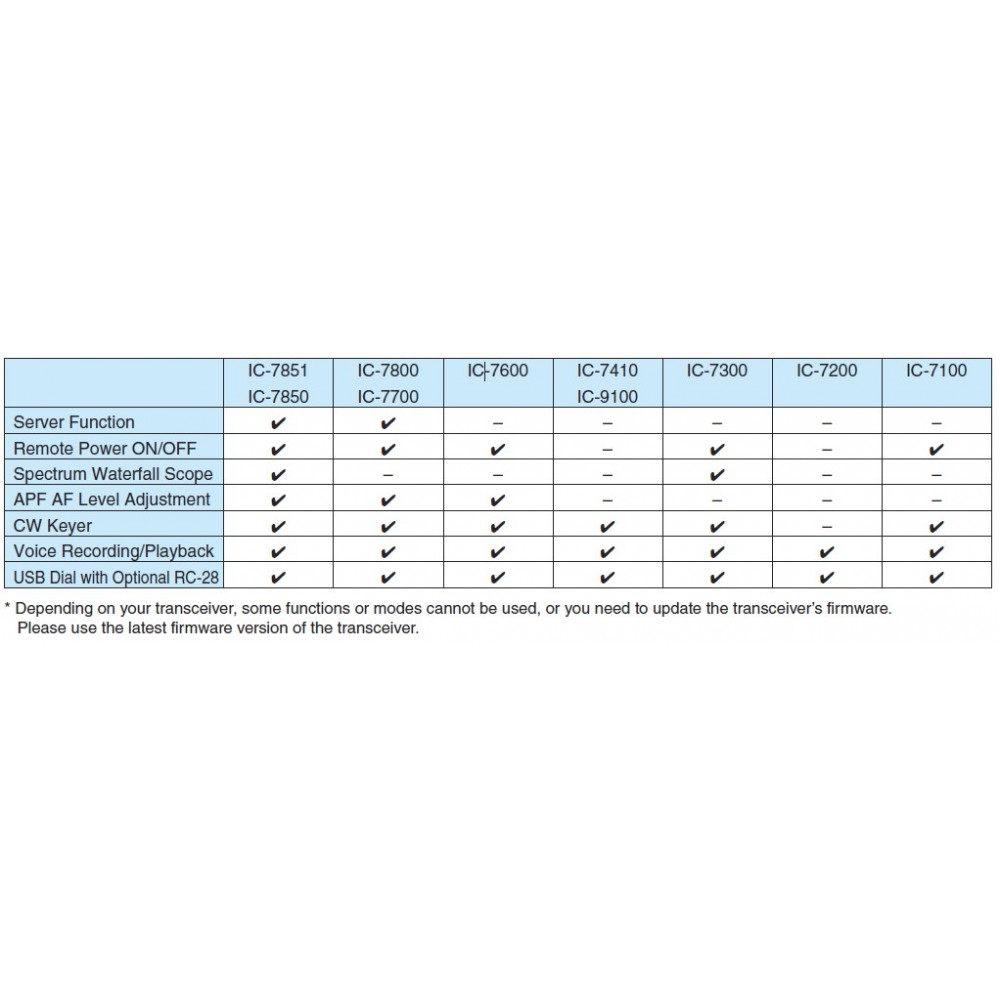

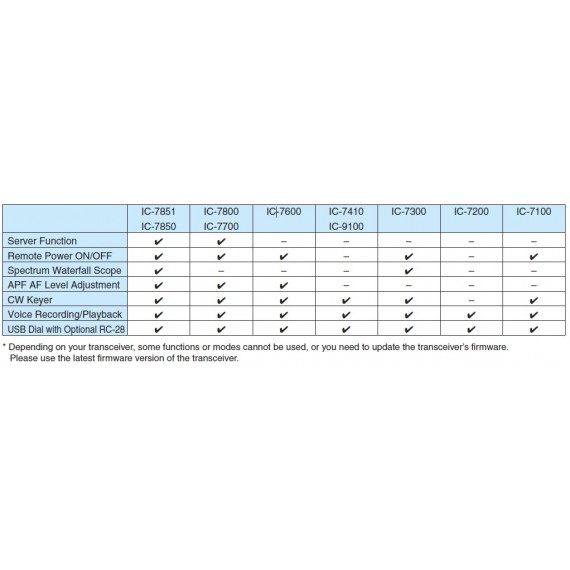

Functions Compatibility Chart

✓ : Function available. - : Function Not available.
*Depending on your transceiver, some functions or modes cannot be used, or you need to update
the transceiver’s firmware.
Please use the latest firmware version of the transceiver.

Supplied items

• USB Stick (including the RS-BA1 instruction manual, the RS-BA1 installer, the USB driver and the USB driver installation guide)
• USB cable (A-B type)
• Installation guides

• New functions in RS-BA1 Version 2
• Dual Watch/Dual VFO/Dual Waterfall [1]
• RIT/XIT function [2]
• SUB Dial [2]
• Requires Windows 7, 8 or 10, 32/64 Bit (Discontinuation of support for Windows XP and VISTA)

[1] Dual Watch/Dual Waterfall only with IC-7851, IC-7850, IC-7610.

[2] depending on radio.

Please note that Icom does not offer an upgrade path from the first edition of 'RS-BA1' to the new 'RS-BA1 Version 2'.
