Messi & Paoloni - RG-58 C/U MIL17-F (100m)

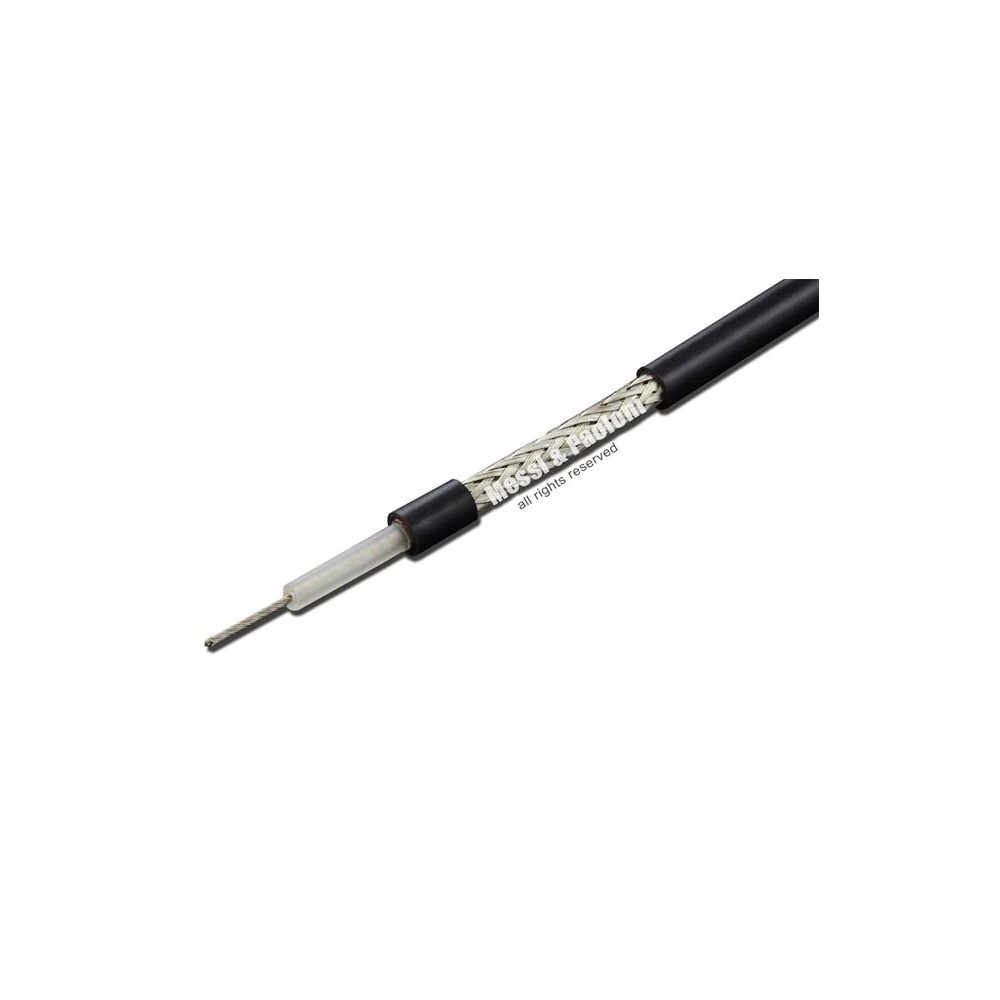

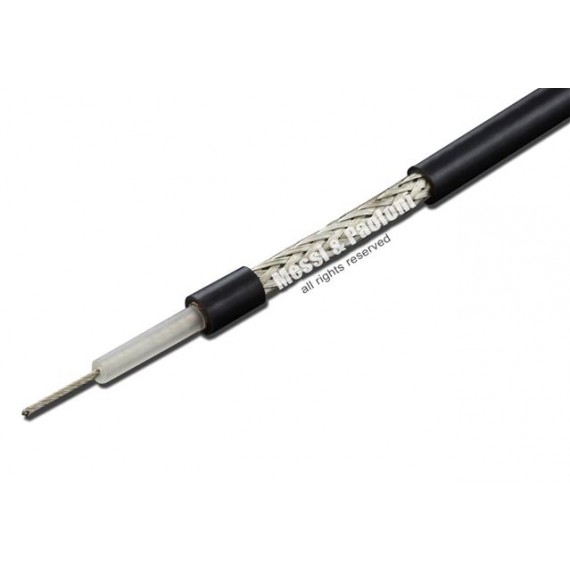

Messi o Paoloni Cable RG-58 Koaxial cable

En høykvalitets coax med mil 17-f standard, 92% skjerm i fortinnet kopper.
totalt 112 kordeller er vikelet rundt senterlederen ved bruk av 16 spoler.
Ytterkappen er UV-motstandsdyktig PVC plast.
Innerlederen består av hele 19x0,18mm fortinnet kobber til en total senterledertykkelse på 0,9mm(+-0,15mm)

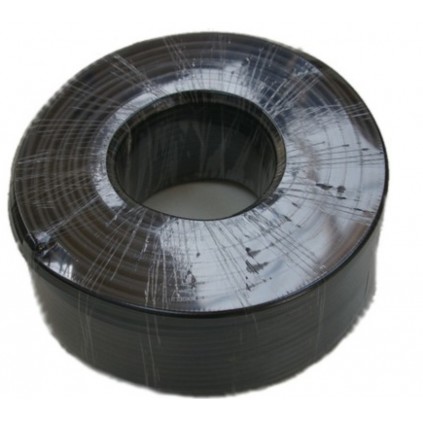

Vær rull leveres med 3 x M&P borelås for å holde kveilen sammen etter bruk.

Messi and Paoloni cables - the pro choice since 1946 with quality is the philosopy!

Insulation material: UV-resistent PVC (5mm +/-0,15)
Thickness cunductor: 0,90 mm
O.D. 2.95 ± 0.116 mm
Shield braid: Stranded tinned copper (112 Wires)with 92% coverage Min.
Colour: Black
Net weight (100m/100ft): 3,7 Kg (2,4 lb)

Impedence @200Mhz: 50 Ohm ± 3
Minimum bending radius: up to 15 bends: 50mm (1.97 in) single bend (choke): 25mm (0.98 in)
Temperature: -40°C to +60°C (-40°F to +140°F)
Capacitance: 101 pF/m ± 2 (30.8 pF/ft ± 2)
Velocity ratio: 66%
Screening Efficiency (SA) 100-900 MHz >55 dB
Screening Class: A++
Inner conductor resistance: 37 Ohm/Km (11.3 Ohm/1000ft)
Outer conductor resistance: 15 Ohm/Km (4.6 Ohm/1000ft)
Tension test (spark test): 4 kV

(RoHS approved)

Attenuation per 100 Meters
1,8MHz - 2,1dB
3,5MHz - 2,9dB
10 MHz - 4.7dB
50MHz - 10.7dB
100MHz- 15.3dB
200MHz - 22.8dB
1 GHz - 55.5dB
