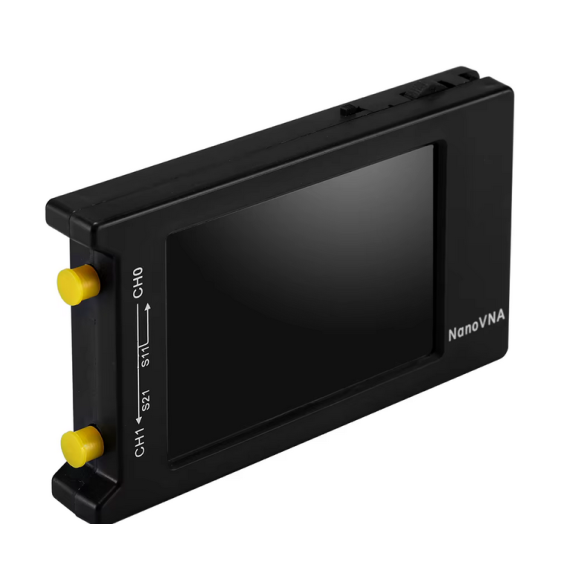

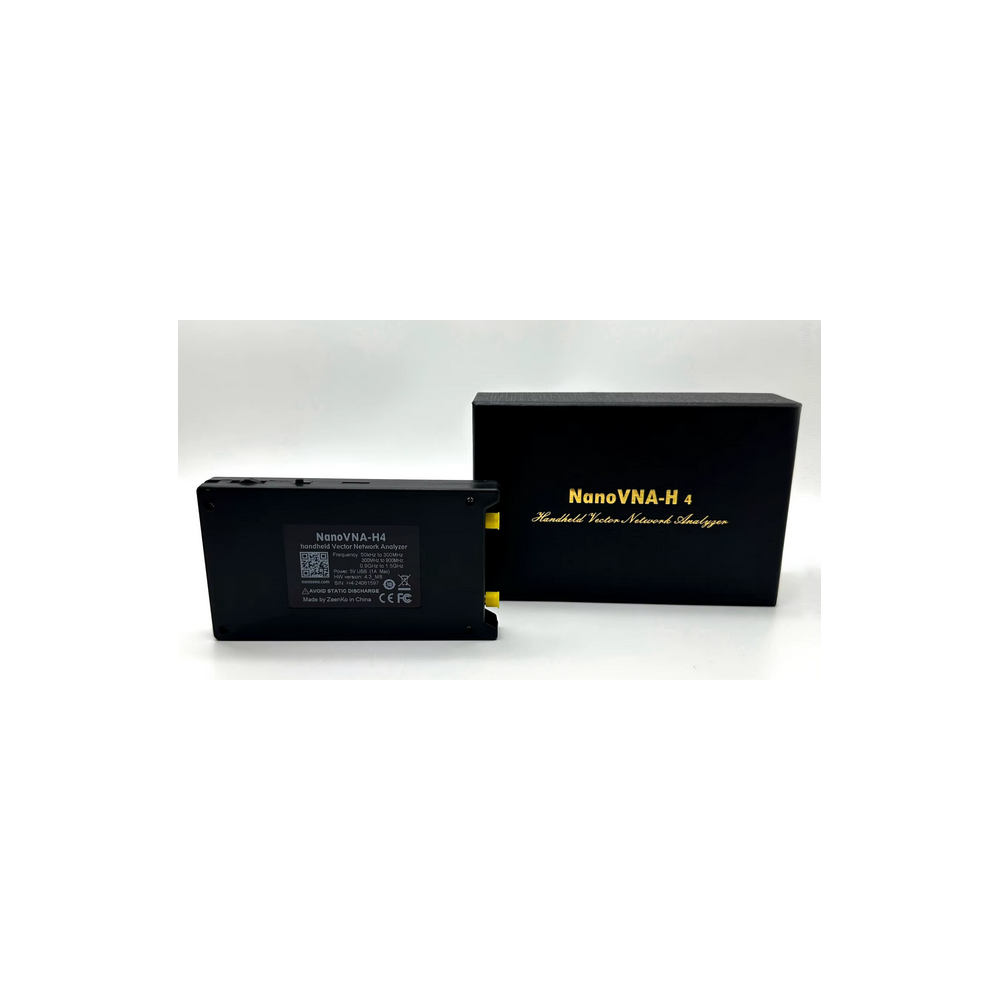

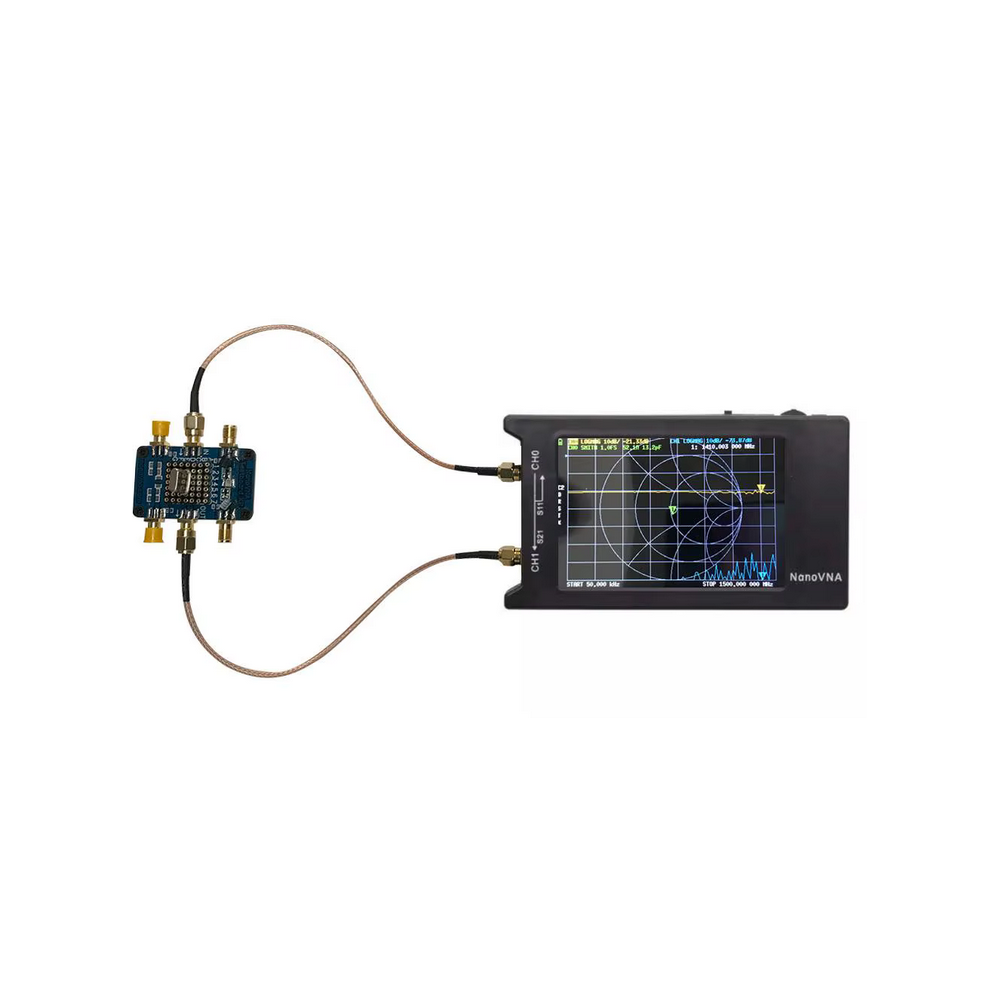

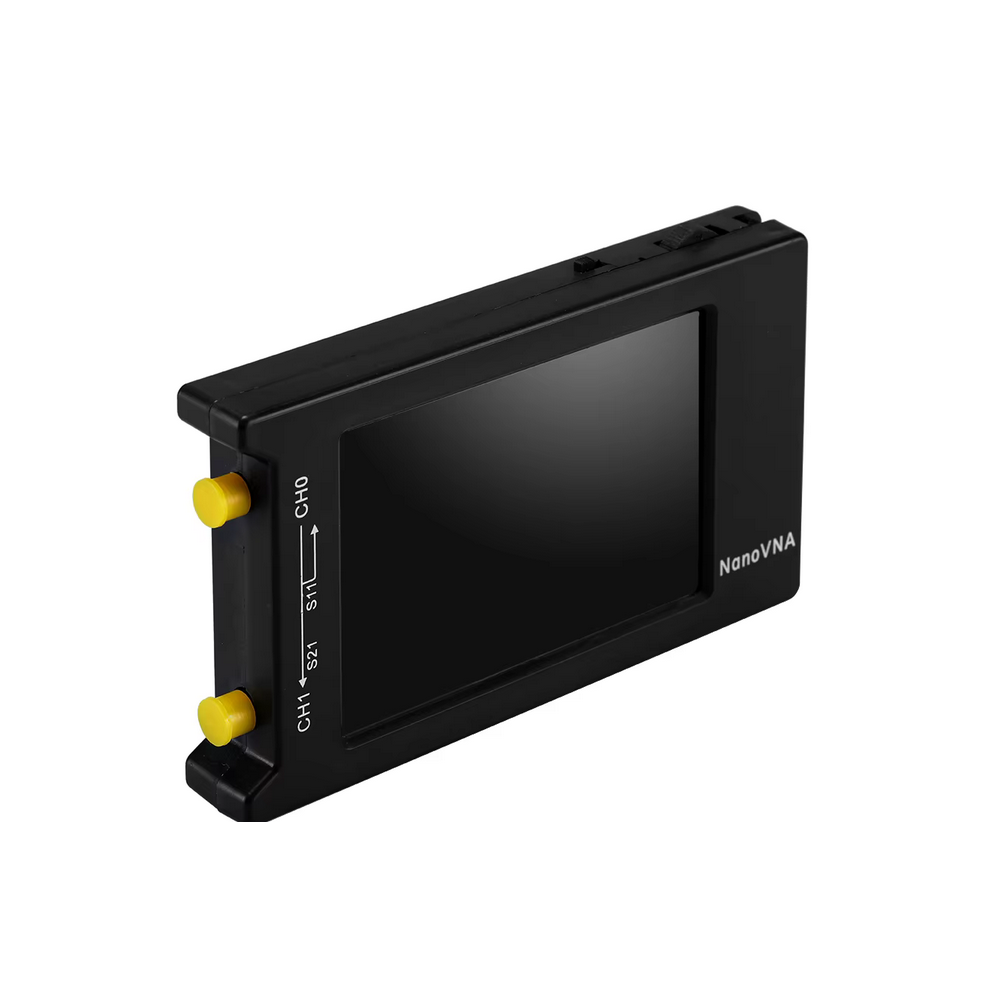

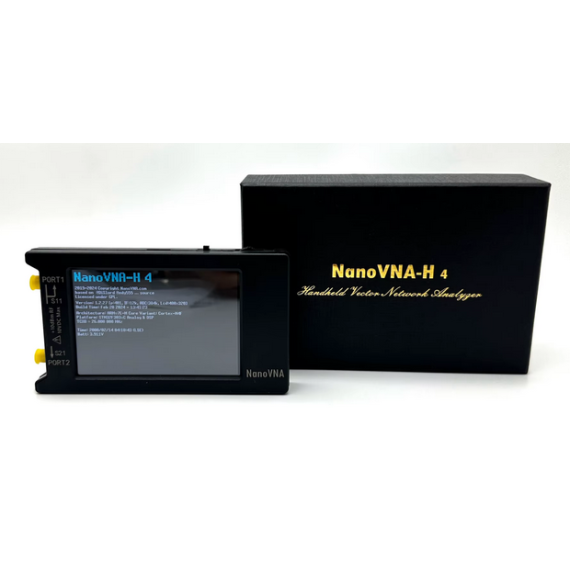

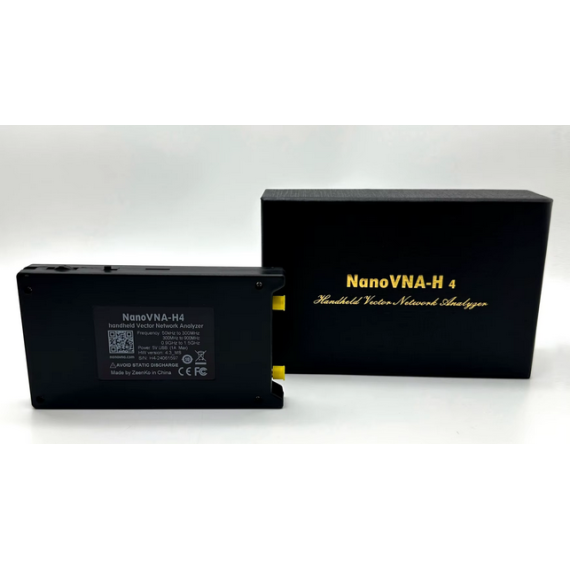

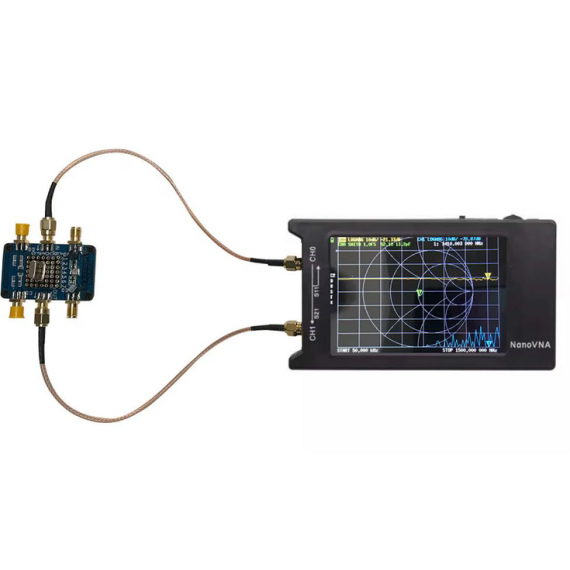

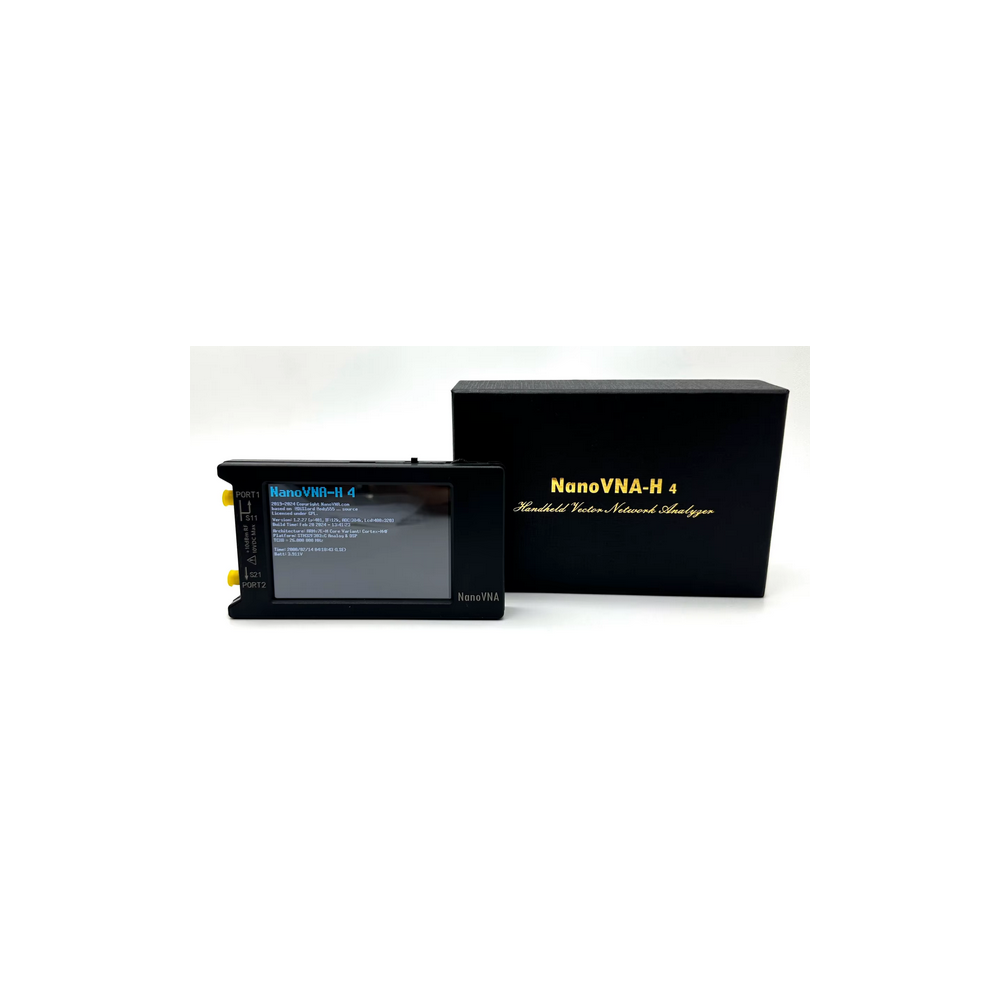

NanoVNA-H4
ABS case: 75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
RF output: 0dbm (±2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR: < 1.1
Display: 3.95 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:<2.5ppm
Frequency Stability:<0.5ppm

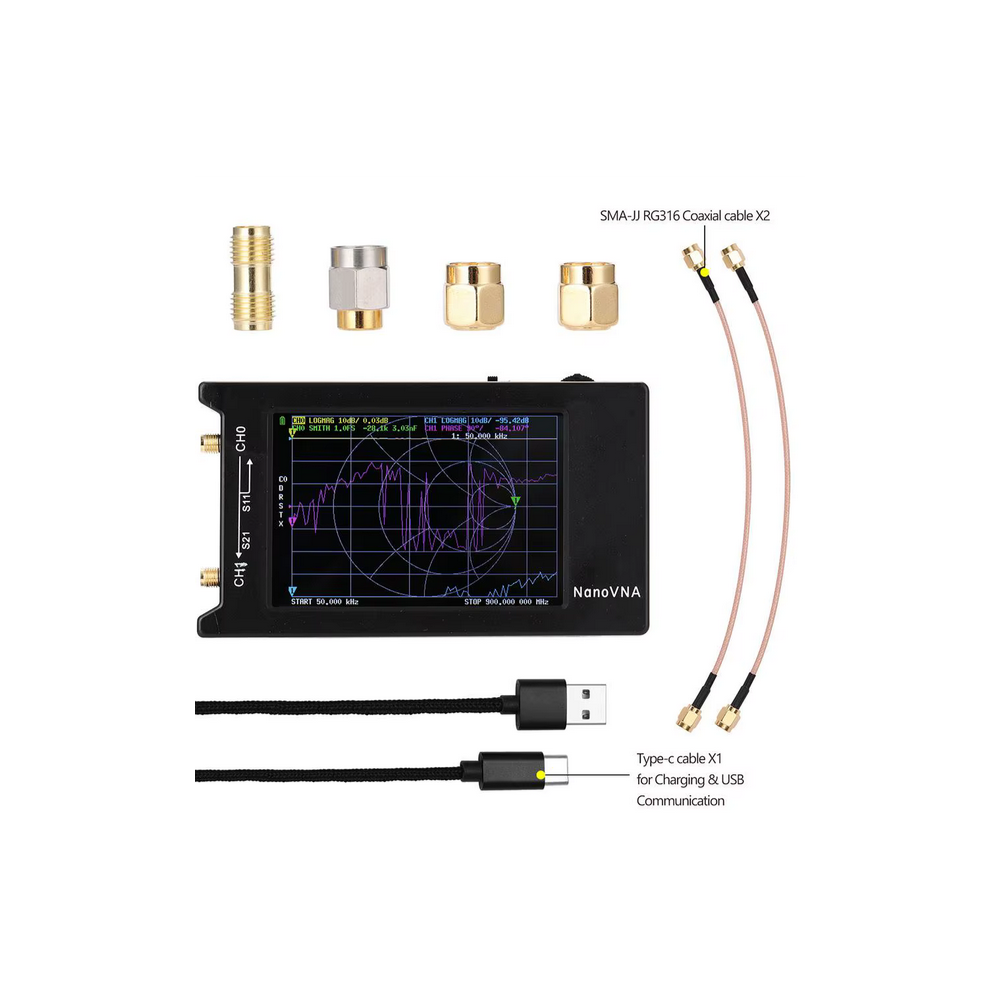

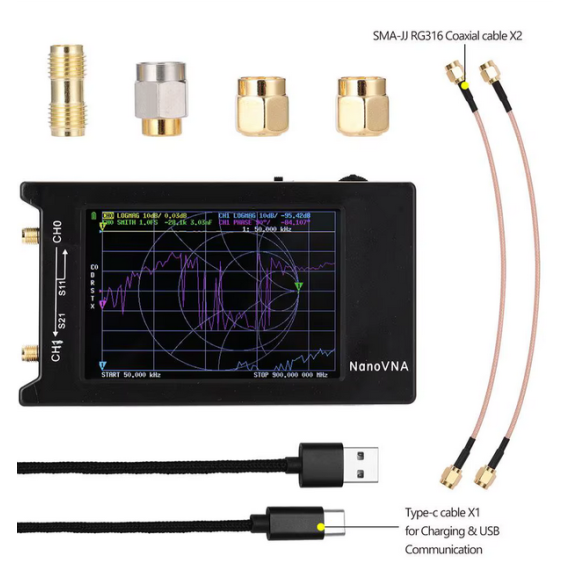

Medfølgende i esken
1 x NanoVNA host (with 1950mAh battery)
1 x USB Type-C data cable
1 x USB Type-C data cable
2 x 15cm SMA male to male RG316 RF cable
1 x SMA male calibration kit - OPEN
1 x SMA male calibration kit - SHORT
1 x SMA male calibration kit - LOAD
1 x SMA female to female connector
1 x Type-c to Type-c cable
1 x display touch tool.
1 x display touch tool.
Link til manual og informasjon:
https://nanovna.com/?page_id=21
