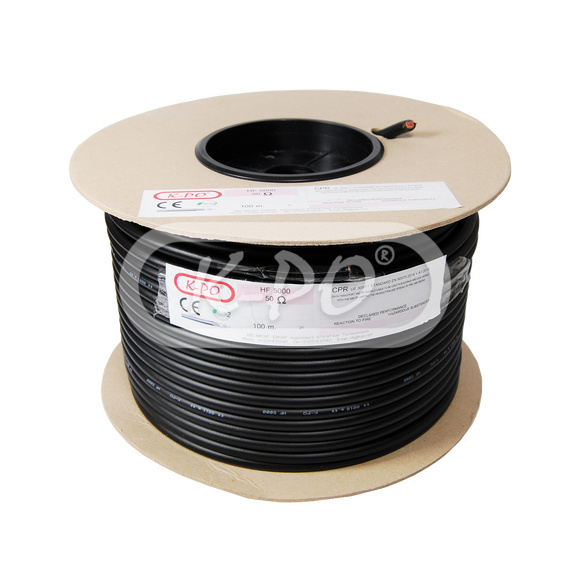

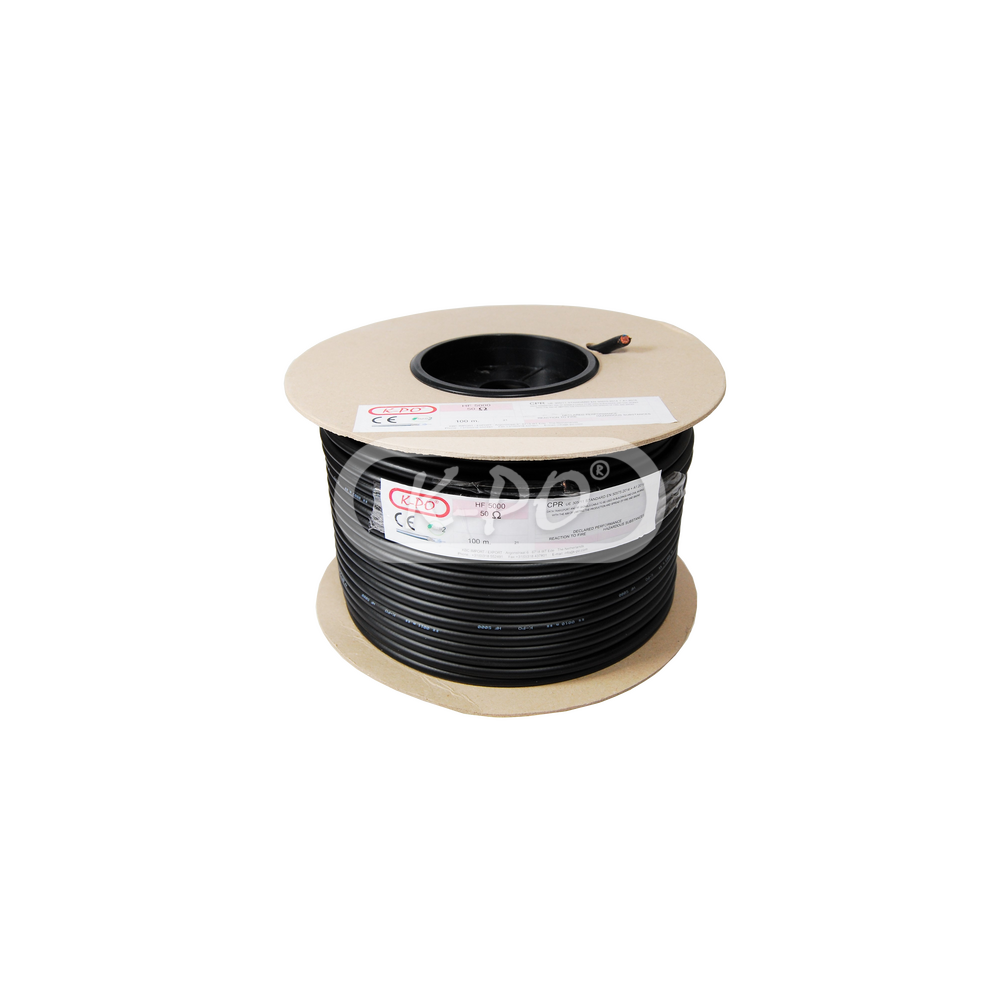

K-PO - HF-5000 10,3mm coax PR.m

10,3mm coax PR.m

Les merShow less
kr 44.00
På lager 80 Enheter
Referanse:
1533
Merke:
Beskrivelse

Plain copper inner conductor: ø 2,50 mm
Low density polyethylene dielectric: ø 6,90 ± 0,20 mm
Plain copper outer conductor: 192 x 0,15 mm
Percentage coverage: 96%
Sheath color: BLACK - RAL 9004
Copper weight: 8.85 kg (100m)
Cable weight: 14.8 kg (100m)
Impedance: 50 ± 3 Ohm
Capacitance: 80 pF/m
Velocity ratio: 84%
Inner conductor resistance: 3,7 Ohm/Km
Outer conductor resistance: 5,5 Ohm/Km
Temperature range: -40°C to +75°C


  • 5 MHz: 1.0 dB
  • 10 MHz: 1.3 dB
  • 50 MHz: 2.8 dB
  • 100 MHz: 3.6 dB
  • 220 MHz: 5.8 dB
  • 500 MHz: 9.0 dB
  • 600 MHz: 10.2 dB
  • 800 MHz: 11.8 dB
  • 900 MHz: 12.6 dB
  • 1000 MHz: 13.4 dB
Les merShow less
Produktdetaljer
1533
