PNI HP-62 Tilbehørspakke med batteri, ladeplugg og antenne

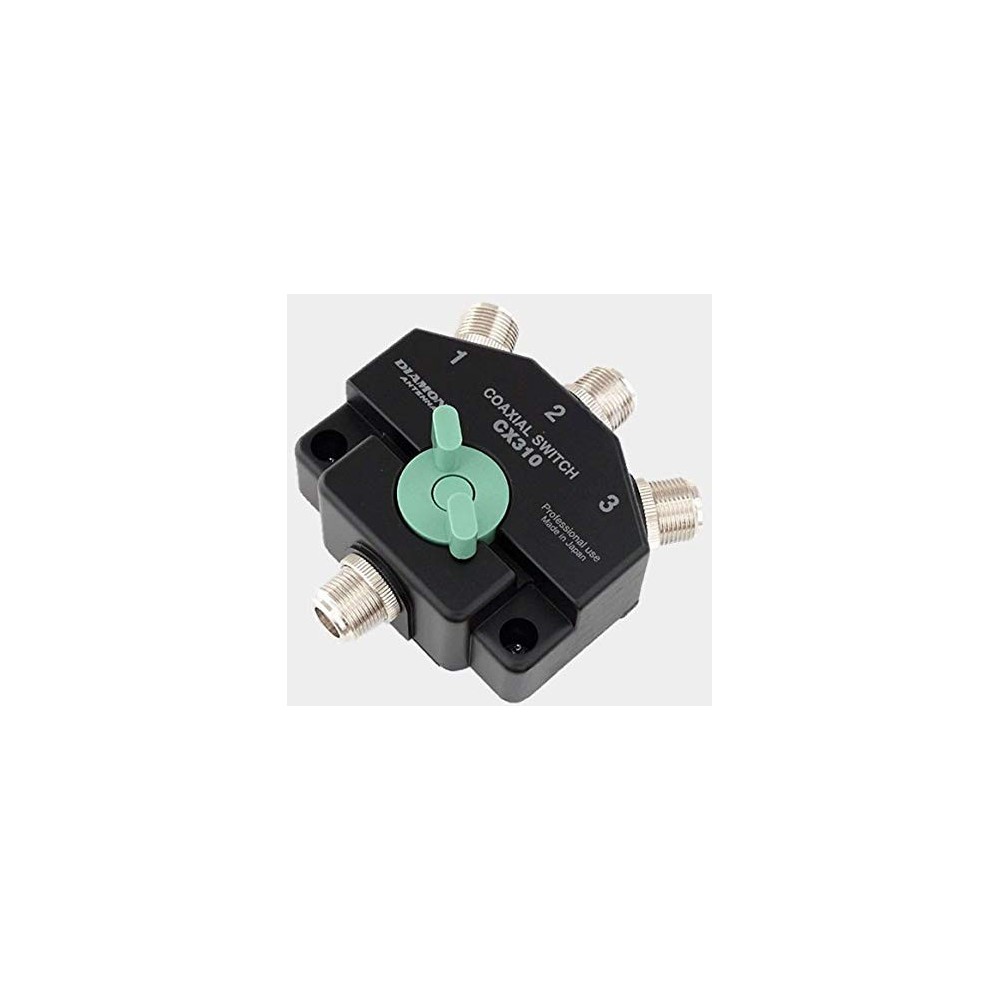

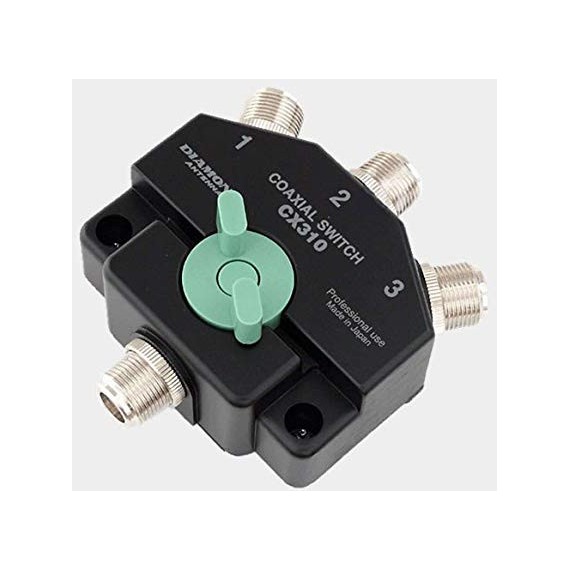

CX310N
Dimensions:71Wx57Hx42Dmm / Weight:440g
Frequency range DC to 1500MHz
Impedance:50ohms / Connector:N-J
VSWR:Less than 1.1:1(DC to 500MHz),less than 1.2:1(500 to 1500MHz)
Insertion loss:Less than 0.1dB(DC to 500MHz),less than 0.2dB(500 to 1500MHz)
Isolation:More than 60dB(DC to 500MHz),more than 50dB(500 to 1500MHz)
Max.power rating(When VSWR is less than 1.2:1):1.5KW(DC to 30MHz),1KW(30 to 150MHz),500W(150 to 500MHz),250W(500 to 1000MHz),150W(1000 to 1500MHz)
