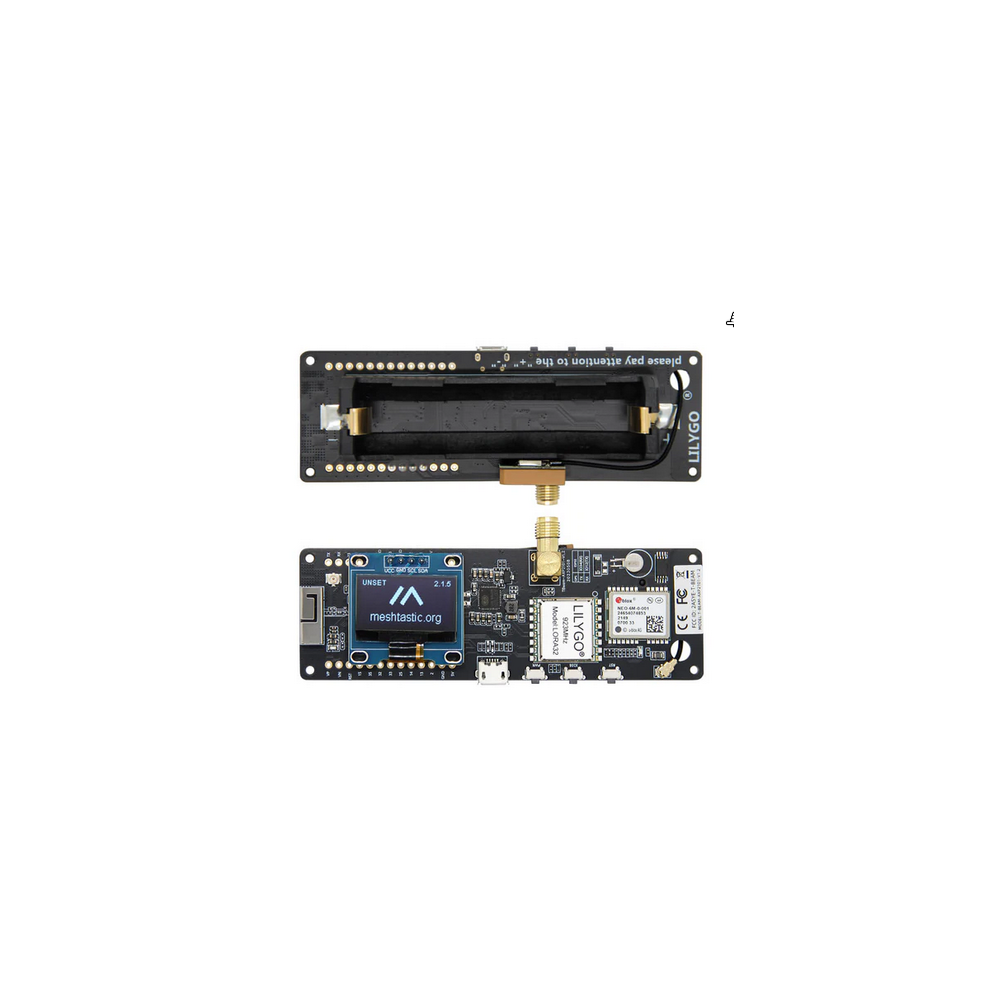

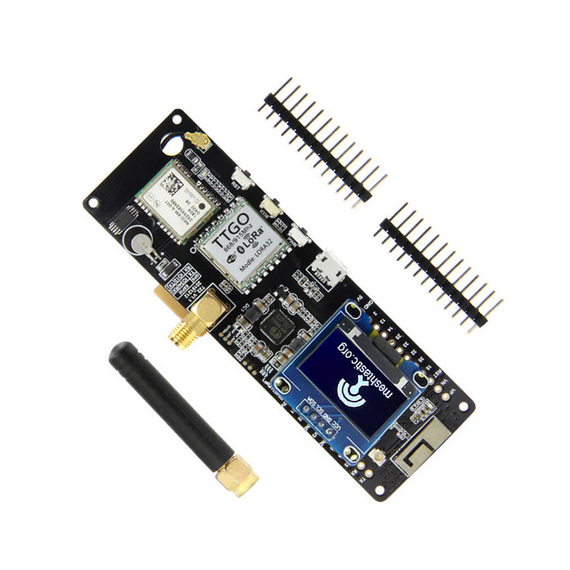

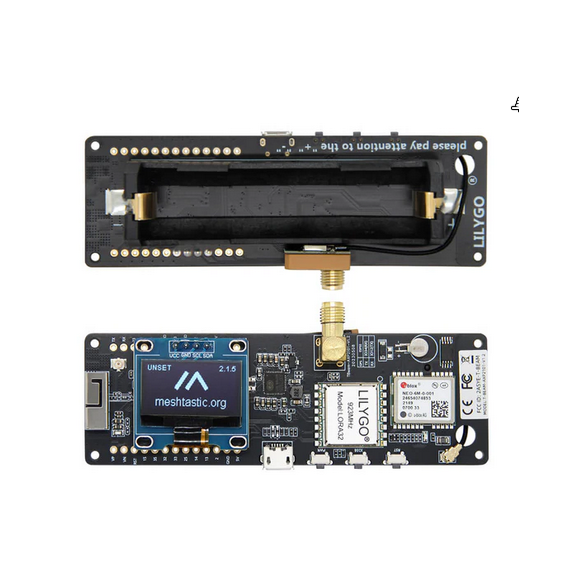

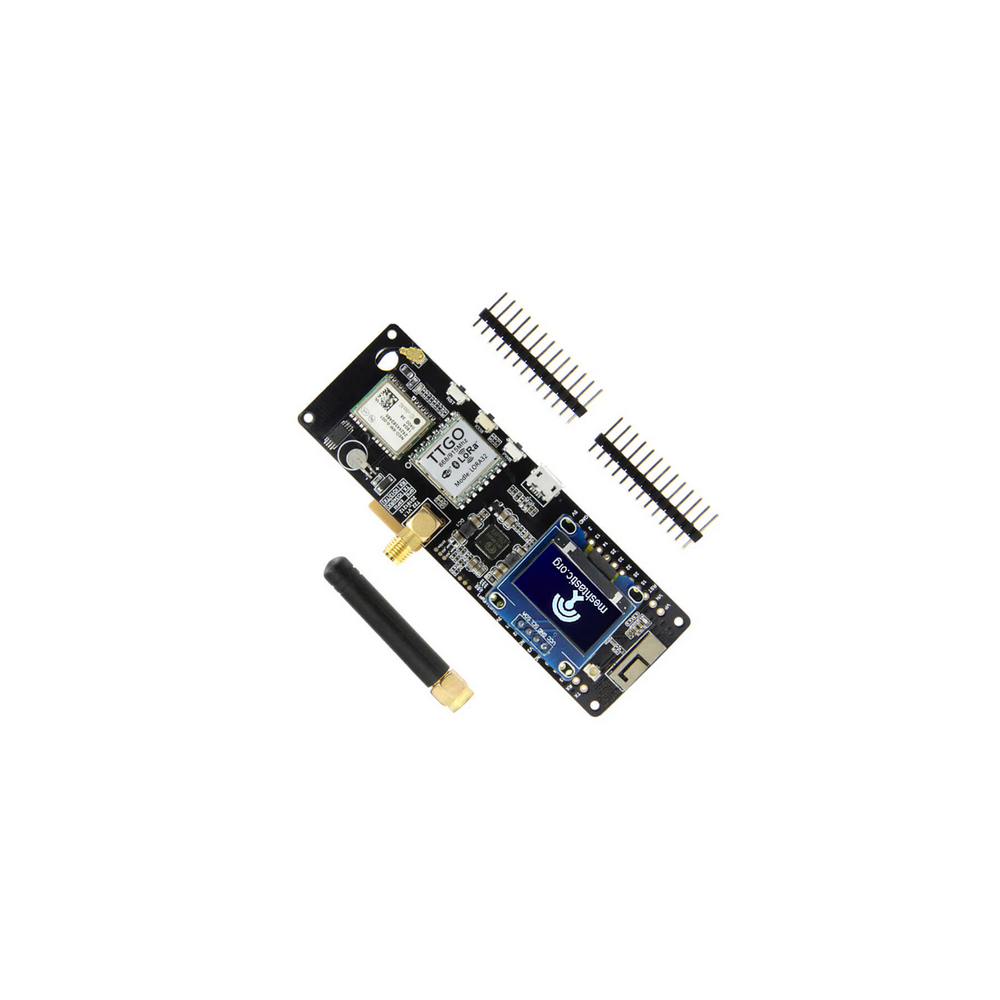

Lilygo - T-Beam Meshtastic - ESP32 LoRa 868Mhz

Med ferdigloddet display

Les merShow less
kr 639.00
På lager 10 Enheter
Referanse:
2042
Beskrivelse

Specifications

MCU ESP32
Flash 4MB
PSRAM 8MB
Serial Chip CH9102
Wireless protocol Wi-Fi + Bluetooth 4.2
PMU AXP2101
Onboard functions 3 Buttons (Power+IO38+Reset)
Antenna
  • 3D WiFi Antenna [Use by default]
  • (Support WiFi IPEX external antenna, but you need to jump resistance)
  • LoRa antenna
  • GPS ceramic antenna

GPS

  • NE0-6M GPS Modules: Support GPS protocol
  • Onboard RTC crystal, Support interrupt/ wakeup

LoRa

  • Long Range Low Power LoRa Transceiver
  • High sensitivity: -i48dBm
  • Transceive rate: 300 kbps
  • Optional Hardware
  • Version: SX1278[868Mhz] / SX1276[868/915/923Mhz]

Display Details

  • OLED: 0.96 inch
  • Driver: SSD1306

Software

  • Meshtastic

Power Supply Mode

Support USB Micro/ 18650 battery holder [USB can power the battery]

Les merShow less
