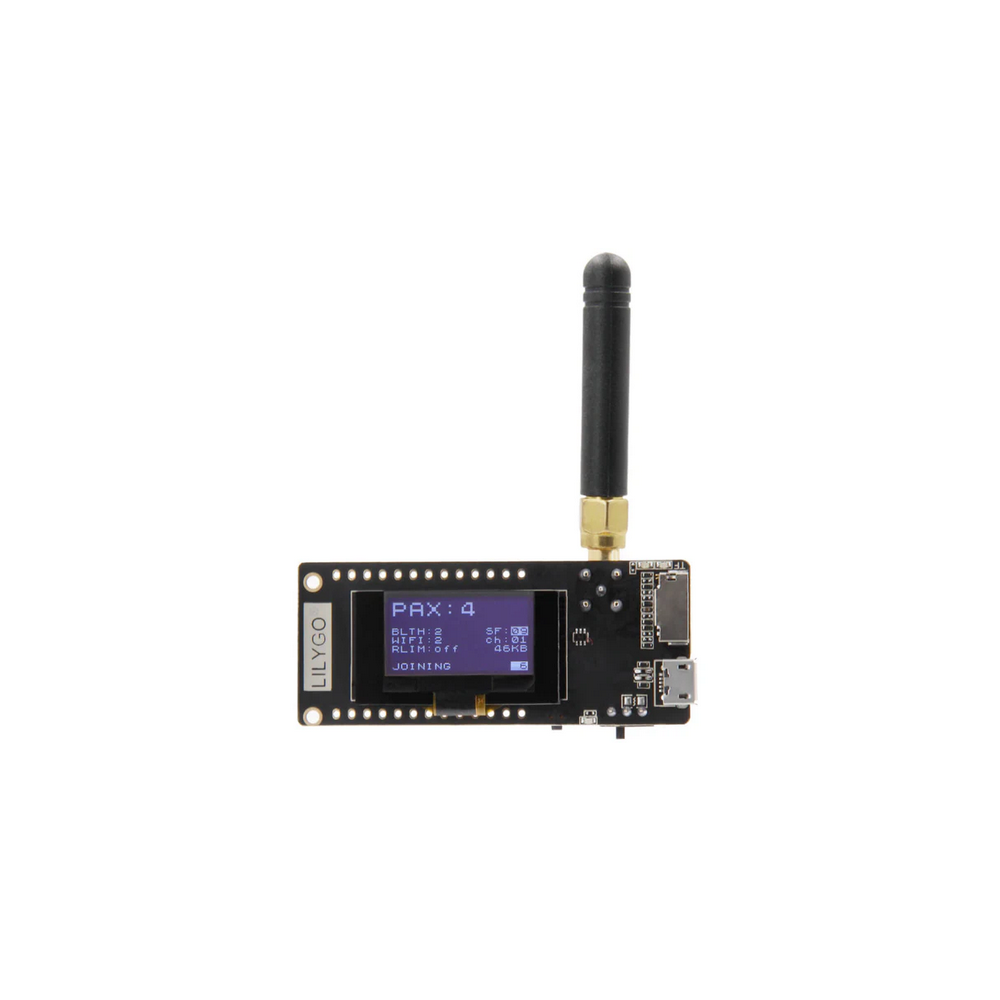

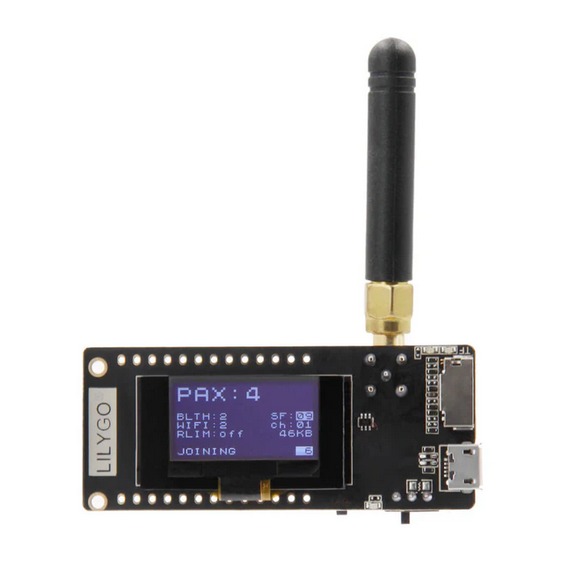

Lilygo - LoRa "disaster-radio" 433MHz

Specifications

LEVERES MED "Disaster-Radio Firmware.

Note : Pay attention to the OLED when opening the box.

Long Range Low Power LoRa Transceiver

• High sensitivity: -i48dBm
• Transceive rate: 300 kbps
• Optional Hardware
• Version: SX1278[433Mhz]

Til LoRa32 V2.1_1.6 finnes det flere spennede firmware som kan blandt annet :

• Paxcounter is an ESP32 MCU-based program for metering passenger flows in realtime. It counts how many mobile devices are around. This gives an estimation how many people are around.

• Paxcounter detects Wifi and Bluetooth signals in the air, focusing on mobile devices by evaluating their MAC adresses.

• Intention of this project is to do this without intrusion in privacy: You don't need to track people owned devices, if you just want to count them.

• Paxcounter does not persistenly store MAC adresses and does no kind of fingerprinting the scanned devices.

• Data can either be be stored on a local SD-card, transferred to cloud using LoRa WAN network or MQTT over TCP/IP, or transmitted to a local host using serial (SPI) interface.

• Disaster.radio is an off-grid, solar-powered, long-range mesh network built on free, open source software and affordable hardware.


• Designed to be open, distributed, and decentralized, disaster.radio is currently in the prototype/development phase.

Firmware kan lastes ned her :
https://github.com/LilyGO/ESP32-Paxcounter

ESP32-Paxcounter
TTGO-LoRa-Series

Paxcounter Testing：

cyberman54-ESP32-Paxcounter

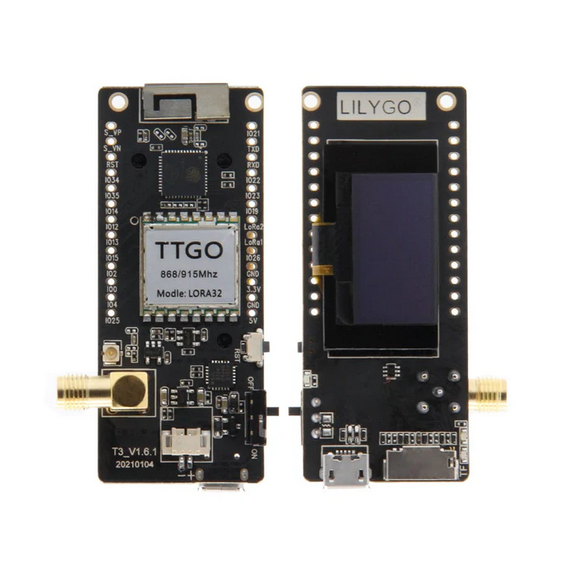

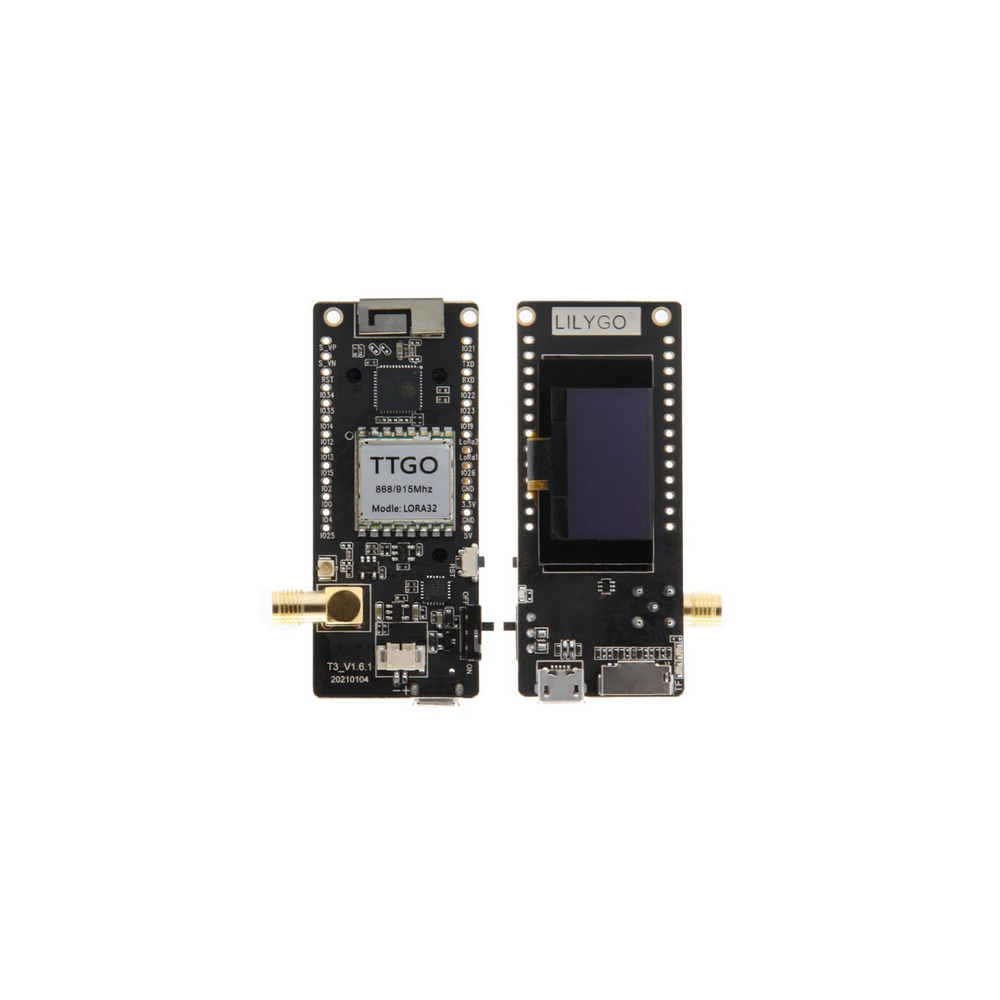

LoRa32 V2.1_1.6 Disaster-Radio

https://disaster.radio/
https://github.com/sudomesh/disaster-radio
https://github.com/sudomesh/disaster-radio/releases/tag/0.2.0

1. Size

2. Pin Diagram
